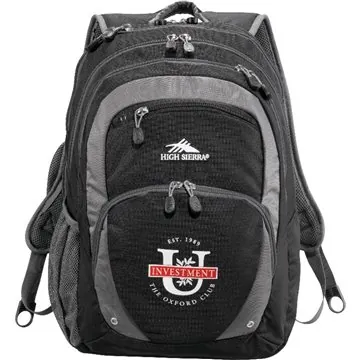

Begin with a rounded rectangle at a 3:2 width-to-height ratio for the main compartment; use very light pencil strokes or a low-opacity vector layer for the construction stage. Place the top curve so it overlaps the body by 18–22% of the height to suggest a flap. Maintain overall symmetry by marking a vertical centerline and a horizontal baseline at 30% from the bottom for pocket alignment.
Add shoulder straps as tapered bands: start at the top corners with a 45° inward slant, transition to 15° outward near the lower attachment, and set maximum strap width to 20% of the main-body width, tapering to 60% of that at the lower end. Front pocket: width = 60% of the main body, height = 25% of body height, placed with its top edge 12–15% above the bottom edge of the main compartment. Add zipper channel 5–8 mm from pocket edge (scale to drawing size).
For perspective, use one-point perspective with the vanishing point on the horizon; reduce rear-side width by 30–40% relative to front-facing width at a typical three-quarter view. Indicate volume by drawing three contour planes (front, top flap, side) and shade according to a single light source at 45° above and left: midtones 50% gray, core shadows 25% gray, highlights left unshaded or at 80–90% white. For textile versus hard-shell materials, vary edge softness and line weight: canvas = softer edges and hatching for texture, molded = crisp contours and minimal internal texture.
Finalize with ink and color on separate layers: keep an initial construction layer, a details layer for seams and hardware, and a color layer for fills. Recommended line weights for traditional media: 0.8 mm for outer contour, 0.3 mm for seams and zipper teeth, 0.1–0.2 mm for stitch marks. Recommended pixel sizes for digital mockups: main body 1200×800 px, strap base width 40 px tapering to 24 px, pocket 720×200 px. Save incremental versions after each major step.
Select a view and mark pack proportions
View selection
Choose a three-quarter perspective for best information on volume and strap routing; use frontal for symmetry checks and profile for depth and silhouette. For three-quarter, establish a vertical centerline and an angled depth axis at 30–45° from the horizontal.
Proportions and placement grid
Use measurable targets: typical day-use dimensions – H 42 cm × W 30 cm × D 16 cm (H:W ≈ 1.4:1, D ≈ 0.53 W); school pack – H 45 × W 32 × D 18 cm; hiking daypack – H 55 × W 34 × D 24 cm. Divide height into four equal bands and width into three columns; mark horizontal guides at 25%, 50% and 75% of total height to place pockets, zippers and compressions.
Main-opening placement: top zipper or flap sits at 6–12% below top edge. Front pocket: use lower 30–40% of height and center it on the middle third of width. Side pockets: set depth at 20–30% of width and mid-height alignment at 40–60% of total height.
Strap anchors and straps: upper anchors at 6–8 cm from the top edge for day-use packs (8–12 cm for larger trekking packs); lower anchors set 8–12 cm above the base corners. Strap width ≈ 8–12% of pack width. Place a sternum strap at roughly 40–45% down the shoulder strap length (about 18–26 cm from upper anchor for common sizes).
Depth handling for three-quarter and profile views: project side plane equal to 40–55% of width for compact models and 60–75% of width for bulky rucksacks. Mark the center of mass around 40–55% of height from the base so the load appears balanced on the torso.
Blocking method: create a front rectangle and offset a parallel side rectangle along the depth axis; connect corners to form a simple box. Use intersections of the height thirds and width thirds to place zippers, pockets and strap anchors precisely before refining contours.
Block main volumes with ovals and rectangles
Use two overlapping vertical ovals for the core volume and a flattened rectangle for the front compartment; treat total pack height as H and set other elements relative to H for consistent proportions.
Main-volume proportions: main oval height = H, main oval width = 0.60H; inner back panel oval width = 0.52–0.55H and shifted 0.05H toward the rear to indicate thickness. Front-pocket rectangle width = 0.70 × main width, height = 0.25H, vertical center placed at 0.60H from the top edge of the main oval.
Side and utility volumes: side-pocket ovals – width = 0.18–0.22 × main width, height = 0.40H, center located 0.15H above the bottom; top flap as a shallow rectangle width = 0.92 × main width, height = 0.10–0.12H with a 0.03H arc on the outer edge to show curvature. Ground-contact base: a horizontal rectangle 0.85 × main width, height = 0.06H, centered at the bottom.
Straps and webbing: block straps as tapered rectangles length = 0.85H, top width = 0.12 × main width, bottom width = 0.08 × main width; anchor points sit 0.15H from the top of the main oval and 0.10H from the inner back panel edge. Sternum strap: small rectangle width = 0.30 × main width, placed 0.40H below the top.
Perspective and orientation adjustments: for a 3/4 view compress far-side widths by 15–25% and rotate ovals 8–12° toward the vanishing axis; for a side view set main oval width = 0.50–0.55H and increase side-pocket projection by 10% to keep mass readable.
Workflow rules: sketch all volumes with light strokes, maintain a centerline for symmetry, use overlaps to indicate depth (front pocket overlaps main oval by 0.02–0.05H), then refine seam lines 2–6 mm inside the blocked shapes to represent fabric thickness and stitching allowances.
Quick reference and unrelated metric comparison: see which nuts have the most protein and least fat for an example of concise ratio presentation that can guide proportional thinking when testing sketches against real objects.
Layout straps, handle and attachment points accurately
Anchor shoulder straps at 0.12–0.18H below the top edge, inner edges set 0–3% of W from the center seam and widening to 8–12% of W at chest level.
Measurements & proportions
- Use H for pack height and W for pack width. Top strap anchors: 0.12–0.18H from top. Hip-belt anchors: 0.60–0.75H from top.
- Shoulder-pad width (padded section): 4–6 cm on medium sizes; webbing width under padding: 2–3 cm. For stylized or large models scale both by factor = H/45 cm (example: for H=50 cm, multiply widths by 50/45).
- Sternum strap vertical placement: 0.35–0.45H from top. Length across chest: 10–18 cm depending on front curvature.
- Handle (top grab): center on top seam, loop length 0.12–0.20W, loop thickness 0.4–0.6 × shoulder-pad thickness. Top handle anchors sit 5–12 mm from top edge.
- Daisy chains/ladder straps spacing: repeat every 4–6 cm vertically. Gear loops: 3–4 cm wide, spaced 6–10 cm apart.
Placement rules and visual construction
- Mark centerline and horizontal guide lines at 0.12H, 0.35H, 0.60H, 0.75H. Use these to place anchors consistently across views.
- For each anchor draw a small rectangle equal to twice the strap width; place rivets 8–12 mm from inner edges and 12–18 mm apart for load-bearing points.
- Shoulder straps: start from top anchors, curve outward with a shallow S (control points: 15–25% and 65–75% along length), then converge toward hip/attachment with an inward angle of 10°–20° relative to vertical.
- Handle: sketch as short cylinder or flattened loop; show stitching box 2× strap width and two rivets centered horizontally.
- Compression straps: place at 0.28H and 0.55H; buckle spacing from side seam 6–10% of W.
- Perspective projection: when the bag is rotated by angle θ around vertical axis, scale lateral distances by cos(θ). Project anchor points onto the visible surface using ellipses for top rim; anchor offsets follow ellipse radii at the same proportional positions.
- Foreshortening of strap width ≈ width × cos(θ). Keep stitch boxes aligned to local surface tangent – draw short parallel lines to the rim ellipse to indicate the tangent direction.
- Reinforcement details: double-stitch perimeter of each anchor rectangle; rivet centers 10–14 mm from stitch corners. Use two rivets for straps with expected dynamic loads, three for heavy-duty load points.
- Tapering: straps taper from pad to webbing over 25–40% of their length; maintain smooth curvature and consistent edge rounding (radius ≈ 0.1 × strap width).
Scale pockets, zippers and buckles accurately
Set external pocket widths at 40–60% of the main panel width and pocket depths at 45–65% of panel height; gusset widths between 12–30 mm depending on intended capacity. Example baseline: main panel 420 mm tall × 300 mm wide → front pocket 180 mm wide × 200–270 mm deep; side mesh pockets 80–100 mm wide with 25–30 mm gussets. Maintain a 6–10 mm seam allowance around pocket openings for topstitching and reinforcement patches of 30×30 mm at high-stress corners.
Zipper sizing and placement
Select zipper types by load and scale: #5 coil for main compartment, #3 coil for small pockets, #8 molded or metal for high-load closures. Specify zipper length to exceed pocket opening by 8–12 mm per end for stops and slider clearance; allow 10–15 mm extra fabric at zipper termini for boxed ends. Position teeth centerline 6–9 mm from raw edge of pocket flap; topstitch 3–4 mm from teeth for a clean channel. For perspective foreshortening, multiply horizontal zipper lengths by cos(rotation angle): at 45° use ~0.71 factor, at 30° use ~0.87.
Buckles, sliders and attachment hardware
Match buckle internal width to webbing nominal width (e.g., 20 mm webbing → 20 mm buckle). Typical webbing sizes: 12, 15, 20, 25, 38 mm; pick hardware of equal nominal size. Anchor stitch box dimensions: 25×35 mm with X-fill for 12–20 mm webbing, 30×45 mm with X-fill for 25 mm+. Place compression buckles at 25–35% of total pack height from bottom and 20–30 mm from side seams for symmetry. Allow 40–60 mm slider travel length beyond buckle when straps are at minimum adjustment to prevent binding. For D-rings and daisy chains, offset base plates 8–12 mm from main seam to leave fabric allowance for reinforcement patches.
Line-weight guidance for sketches: primary silhouette thick (ratio 4), hardware contours medium (ratio 2), stitching, zipper teeth and mesh texture thin (ratio 1). For reference proportions of storage accessories and stand compatibility consult best inexpensive umbrella stand and best dog backpack for hiking.
Render folds and creases to show soft or stiff fabric
Map tension vectors from strap anchor points and load edges; these vectors dictate primary crease directions and where fabric will compress or tighten.
Tension patterns and crease types
Identify three crease families: primary (long, continuous; follows curvature of panel), secondary (short, radiating from anchors or seams), and tertiary (tiny puckers at stitches and rivets). On soft textiles, place primary creases that span 50–80% of the panel length with gentle S-curves; secondary creases 15–40% of panel length, spaced 10–30 mm apart. On stiff textiles, use primary creases as shorter, straighter folds spanning 20–50% of panel length; secondary creases 5–20% of panel length, spacing 3–10 mm. Add micro-puckers 1–4 mm long along stitch lines every 6–12 mm to sell sewn tension.
Position compression folds at corners and where load-bearing meets flat planes: bottom corners form triangular folds whose base equals 8–15% of panel width; pocket mouths generate radial creases 2–8 mm long depending on material softness. For strap tension, render 2–3 radial fold lines emanating from the strap anchor, decreasing in length by roughly 40% per step away from the anchor.
Shading, line weight and texture marks
Use line weight and shadow to differentiate softness. Soft fabric: fine contour lines 0.08–0.3 mm, low-contrast core shadow (20–40% tonal drop), smooth gradient across 8–20 mm from fold edge. Stiff fabric: heavier contours 0.25–0.8 mm, sharp core shadow (40–70% tonal drop), short cast shadow with abrupt tonal change over 3–10 mm. Cross-contour hatching should follow panel curvature: spacing 4–8 mm for soft, 1–4 mm for stiff.
For highlights and worn edges, break crease lines with interrupted strokes and add tiny fiber marks along seams for soft textiles; for coated or laminated surfaces, use crisp, continuous highlight strokes and minimal surface noise. When illustrating zipper channels, draw a 1–3 mm raised tape with 2–6 mm radial folds at zipper stops and ends.
| Attribute | Soft fabrics (thin nylon, cotton) | Stiff fabrics (coated canvas, Cordura) |
|---|---|---|
| Primary crease length | 50–80% of panel | 20–50% of panel |
| Secondary crease length | 15–40% of panel; spacing 10–30 mm | 5–20% of panel; spacing 3–10 mm |
| Micro-puckers (stitch/rivet) | 1–4 mm, every 6–12 mm | 1–3 mm, concentrated near seams |
| Line weight | 0.08–0.30 mm varied | 0.25–0.80 mm stronger |
| Shadow depth (core) | 20–40% tonal drop | 40–70% tonal drop |
| Hatching spacing | 4–8 mm following contour | 1–4 mm dense, directional |
Refine linework and apply shading or texture for material
Use variable line weight, three tonal bands (base, core shadow, specular highlight), and material‑specific stroke language to finish the pack sketch.
Linework refinement
Clean construction marks with a soft eraser, then ink final contours with progressive nib sizes: 0.05–0.2 mm for fine stitching and zipper teeth, 0.3–0.5 mm for seam lines, 0.6–0.8 mm or a brush pen for primary outer silhouettes and heavy shadow edges. Thicken lines on the side away from the light source and at overlap points (straps over body, pockets under lip) to imply depth. Use broken strokes and short hatch fragments instead of a single heavy outline to suggest rough fabric edges. Add cross‑contour lines spaced to match curvature: tighter spacing where form compresses, wider where surface flattens. Keep corner terminations slightly lifted (tapered) to avoid mechanical, flat outlines.
Shading and texture per material
Establish a single light direction and build tones in layers: 1) flat midtone (30–60% gray), 2) core shadows (10–25% gray), 3) cast/contact shadows (5–12% gray), 4) specular highlights (95–100% white). For heavy cotton twill/duck cloth use short diagonal hatch clusters with irregular spacing and occasional stippling to suggest weave; hatch spacing: 6–8 mm for light areas, 3–4 mm for midtones, 1–2 mm for deep shadow. For nylon/ripstop apply smooth gradients with sharper, small white specular spots and a faint grid of tiny squares for ripstop texture at low opacity. For leather render long, blended gradients with subtle grain dots and tighter wrinkles at flex points; place bright, narrow highlights along fold creases and edge bevels. For foam‑padded panels use very soft, wide tonal blends and blurred edges; apply reflected light at contact seams. Metal hardware requires crisp, high‑contrast bands: alternate bright highlight, dark value, midtone to imply reflection–use micro shapes of surrounding values inside the metal to sell reflectivity. Zipper teeth: repeat small rectangles with a thin white line along the outer edge to simulate shine. Mesh pockets: indicate pattern with sparse, consistent dot grid and darker inner cast shadow to imply depth without drawing every hole.
Traditional tools: kneaded eraser for lifting highlights, blending stump for smooth transitions, mechanical pencil HB–2B for tight cross hatching, fineliners 0.05–0.8 mm for final lines, soft brush pen for heavy strokes. Digital tools: separate layers (lineart, base tone, shadows multiply, highlights screen), pressure‑sensitive brushes for variable stroke width, textured fabric brushes at 10–25% opacity for grain, and a noise/grain overlay at 3–8% for organic feel. Final pass: add small edge highlights and a soft cast shadow under the pack to anchor it to the ground plane.
