Recommendation: Roll your sleep quilt into a 10–15 cm diameter, place it inside a 2–3 L roll-top waterproof compression sack, then secure it under the lower rear of the pack with two 25 mm (1″) adjustable straps with side-release buckles. Use strap lengths of 60–120 cm so you can route one through the pack’s lower daisy chain or haul loop and the other across the hipbelt stabilizer. Limit exterior load to ≤3 kg (≤6.6 lb) or roughly ≤10% of total carried weight to keep the center of mass close to your hips.
Procedure details: Stuff or tightly roll the quilt, expel air, then cinch the dry sack tightly. Thread strap A through the pack’s lower webbing, under the dry sack and back through its buckle; pre-tension with a couple of firm pulls. Repeat with strap B crossing perpendicular or slightly angled to prevent rotation. Add a 550 paracord safety line tied with a trucker’s hitch to a D‑ring or the hipbelt loop and clip to a non‑load‑bearing carabiner on the sack for redundancy.
Tolerances and hardware: Use 25 mm flat webbing for main straps (rated ≥200 kgf breaking strength for common gear straps), 550 paracord (Type III) for backup, and side‑release buckles with metal inserts or reinforced plastic. If using shock cord, choose 3–4 mm diameter with cord locks. Avoid relying solely on single-point lash; two independent lash points greatly reduce sway and chafing. Re‑check tension after 50–100 m of walking and after stream crossings.
Protection and packing tips: Wrap the dry sack in an abrasion sleeve (old groundsheet or taped ripstop fabric) if trekking through brush. Keep the unit tucked up against the pack frame, just above the hipbelt, never trailing below the hipbelt line where it can snag. Stow lightweight, compressible items inside the pack to keep load high and stable; use the external roll only for bulky, low‑weight items. Final field checklist: straps snug with no more than 2–3 cm lateral play, backup cord secured, dry sack sealed, and overall exterior mass under the recommended limit.
Identify compatible mounting points on your pack
Prefer lower reinforced webbing and horizontal compression straps for carrying external kit; verify strap width, stitch pattern and buckle type before fastening any load.
Where to inspect
- Lower lash straps: look for boxed or bartack stitching and a welded end; ideal webbing width is 20–25 mm (≈1 inch) so common straps and buckles fit without trimming.
- Compression straps (side and lower): confirm they run horizontally and sit below the main lid – these are usually designed for steady loads and accept 20–25 mm webbing or 1″ cam straps.
- Daisy chain and gear loops: measure loop pitch (distance between stitches). If loops are ~20–25 mm apart they accept narrow cord/straps; avoid relying on single-row daisy chains for heavy, dynamic loads unless reinforced with extra stitching or a webbing backing.
- Ice-tool/haul loops: metal-reinforced or double-stitched loops near the base are strong points for rigid gear; check for metal eyelets or layered webbing.
- Hip-belt webbing and side pockets: short lash points on the belt are good for small items; do not overload these – they’re not designed for bulky external loads.
- Top-lid straps: usable for light, compressible items only; they sit high and shift the center of mass away from the torso.
Quick compatibility checklist
- Measure strap/webbing width with a ruler; choose replacement straps that match 20–25 mm where possible.
- Inspect stitching: look for X-box, bartack or multi-row stitches and no loose threads.
- Test by hand-pulling expected load plus 30% for margin; if the webbing or buckle stretches, select a different point.
- Prefer routes that keep mass close to the hip belt and centerline; pick lower horizontal straps over top-facing lid straps for heavy kit.
- Confirm hardware type: ladder-locks and cam buckles handle cinch loads well; plastic side-release buckles are common but avoid using them as sole load-bearing points for heavy external cargo.
- If urban carry is needed instead of outdoor rigging, compare features with a best messenger bag for modern worker or a best commuter gym backpack to see integrated external pockets and straps designed for daily items.
Final check: any chosen point should have reinforced stitching, accept your strap width, and keep the mass low and centered to preserve comfort and stability during movement.
Select and size straps or bungee for your sleep system
Use two 25 mm (1″) polyester webbing straps with aluminum cam buckles rated ≥5 kN (≈1,120 lbf break) for most rolled sleep kits; upgrade to three 25–38 mm straps when the roll length exceeds 60 cm or diameter exceeds 20 cm.
Strap types and specs: polyester webbing (low stretch, UV resistant) is preferred; nylon stretches when wet. Width choices: 19 mm (¾”) for ultralight, 25 mm (1″) for general use, 38 mm (1.5″) for bulky or heavier loads. Minimum working load: choose hardware with a working load limit (WLL) ≥500 N; preferred break strength ≥3,500–5,000 N for long-term durability.
Bungee/shock cord guidelines: 4 mm (1/8″) for very light, compressible rolls; 6 mm (1/4″) for medium-duty; 8 mm (5/16″) for heavy or large-volume rolls. Use cord locks or knot-and-loop finishes; avoid relying on single thin cords for long treks – use redundancy (two cords crossed) if weight is critical.
Length calculation (practical formula): Required strap length ≈ 2 × anchor spacing + 1.2 × roll circumference + 30 cm tail. Example: roll diameter 20 cm → circumference 63 cm; anchor spacing 40 cm → length ≈ 2×40 + 1.2×63 + 30 = 185 cm (round up to 2.0 m per strap).
Number and placement: two straps placed 20–30 cm apart are adequate for compact rolls; three straps spaced evenly for rolls >60 cm. Position straps so they compress the roll along its shortest axis and prevent lateral slip under motion.
Hardware choices: aluminum cam buckles for tool-free tensioning; stainless steel or anodized aluminum hooks if using quick hooks; ladder-locks for adjustable sewn systems. Avoid lightweight plastic buckles on main load-bearing straps.
Finishing and safety: leave 20–30 cm tail beyond the buckle for trimming/tucking; fuse synthetic tails or sew with bar-tack to prevent fraying. For elastic runs, back up single knots with a secondary knot or small heat-shrink sleeve and inspect elasticity after 12 months of UV exposure.
Step-by-step: Lash bedroll under rucksack with straps
Recommendation: use two 25 mm (1″) nylon webbing straps with low-profile quick-release buckles, 100–150 cm long; add a third strap for rolls over 35 cm diameter or for wet gear. Cut ends to leave 20–30 cm tail for locking knots.
Positioning and protection
Place the roll centered on the pack’s longitudinal axis, rear edge 5–10 cm forward of the frame’s rear plate to avoid ground contact. Insert a 3–5 mm closed-cell foam sleeve between fabric and webbing where the straps cross to prevent abrasion. Fold or clip the hipbelt out of the way so straps do not obstruct closure.
Step sequence
1. Feed Strap A under the frame or through lower lash points from left to right so the buckle faces up. Loop it over the roll, feed the tail through the buckle and snug to remove slack – do not fully tension yet.
2. Repeat with Strap B from right to left, mirroring Strap A so both buckles sit on top of the roll and the webbing forms a parallel cradle.
3. Create an anti-roll cross: take a short third strap or a 120–150 cm strap and form an X across the roll by routing it under the roll at a 45° angle, up over one side, across the top, then under the opposite side and through its buckle. Tighten until the roll cannot rotate more than 10°.
4. Final tensioning: alternate tensioning Strap A and Strap B in 2–3 passes until the webbing lies flat and the roll is compressed just enough that it does not move independently of the pack. Even tension left-to-right prevents torque on the frame.
5. Lock tails: for cam or tri-glide buckles, form a half hitch around the standing part and tuck the tail into the elastic keeper or under an adjacent strap. For quick-release buckles, feed tail through a sewn loop or use a small zip tie as a secondary safety.
6. Quick field test: lift the rucksack by the shoulder straps and shake side-to-side; a secure load will show less than 3 cm of slippage. Walk 100–200 m over varied terrain and recheck tension–poly webbing stretches slightly when wet.
7. Final checks: confirm no buckles press against lumbar or hip areas, ensure access to lower pockets remains usable, and keep sharp items away from the fabric contact zones. For long trips, inspect straps daily and re-tension after heavy rain.
Tie sleep kit with shock cord and cord lock for ultralight setups
Use 2.5–3.0 mm shock cord with two low‑profile cord locks and either one continuous 2–3 m length or two loops of 50–70 cm; aim for total added weight ~10–20 g and target working stretch of 35–50% under load to stop bounce without crushing loft.
Materials
Cord: 2.5–3.0 mm elastic cord (commercial “shock cord” or 100% latex core) – 3 mm ≈ 4–6 g/m. Cut length options: single 2–3 m line for a continuous cradle, or two 50–70 cm loops for independent holds.
Locking hardware: two micro cord locks (single‑hole toggle, low profile) 2–4 g each. Optional: micro carabiners (3–6 g) or lightweight cord clips for quick release.
Finishing: heat‑seal or melt ends, 20 mm of heat‑shrink at each tail for abrasion resistance, and a dab of seam grip or light glue on knots for long trips.
Technique
Lay the roll or quilt with its long axis parallel to the pack’s lower strap plane. Make a cradle from the shock cord: route a continuous loop under the roll, cross ends over its face, and thread both ends through a cord lock placed on top. Pull to tension until lateral movement is eliminated but loft still springs back ~5–10 mm when released.
For two‑loop method, place one loop near the head end and the other near the foot end. Feed each loop through daisy chains, lower compression straps or webbing slots, then lock with a cord toggle. Leave 3–5 cm of tail and secure with a double overhand or a short running‑stopper; melt tips to prevent slippage.
Use a girth hitch or simple wrap‑and‑tuck to center the roll; add a second cord lock as a backup or for micro adjustments during the day. Position cord locks where they won’t rub against hipbelt seams or wear zones; tuck excess under straps or into a webbing tunnel.
Practice tensioning on the trail: aim for moderate preload, check for abrasion points, and reassess after a few kilometers. For quilts, allow slightly looser tension to avoid compressing insulation layers; for rolled pads, tighten more to prevent flapping.
Protect sleep system from moisture and abrasion on the lower pack area

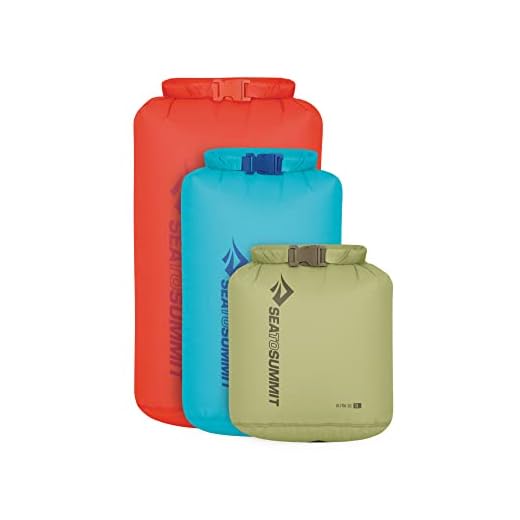

Use a welded roll-top dry sack rated ≥5,000 mm hydrostatic head and place it inside a 200–500D Cordura sleeve for combined waterproofing and abrasion resistance.
Preferred fabrics and ratings: welded silicone-coated nylon or silpoly for the dry sack (20–70D for weight-sensitive setups, choose ≥3,000 mm HH for light rain, ≥5,000 mm HH for sustained exposure); outer sleeve in 200D Robic or 500D Cordura where scraping against rocks and branches is likely.
Layer strategy: primary layer = waterproof dry sack (welded seams, roll-top closure); secondary layer = abrasion jacket or sewn sleeve; tertiary shock-absorbent layer = 3–5 mm closed-cell foam pad or neoprene strip between the jacket and webbing to reduce chafe.
Seam and closure details: avoid stitched closures without taped seams. If using sewn sacks, seal seams with a urethane seam sealer (e.g., Gear Aid Seam Seal) and reinforce high-wear edges with 3M abrasion tape or Tenacious Tape patches sized 5×10 cm along pressure points.
Condensation and internal moisture control: pack the insulated quilt inside a breathable mesh bag after it has air-dried; store a 50–100 g silica gel pouch inside the dry sack for multi-day treks in humid environments. If using down insulation, treat with a DWR/restorer (Nikwax Down Wash Direct or Grangers Down Repel) to reduce soak-through risk.
Rapid wet-weather protocol: transfer the insulated system into an inner dry sack before subjecting the outer sleeve to water; if outer layer becomes saturated, remove and let it dry in sunlight or near a low-heat source, and replace foam buffer so abrasion protection remains constant.
Field repairs and reinforcement: carry a 10×15 cm Tenacious Tape patch, a 3–5 g tube of urethane adhesive (Seam Grip WP), and a 30 cm strip of thin closed-cell foam. For ripped outer jackets, overlap patches by 2 cm and press for 60 seconds; for seam leaks, coat with seam sealant and cure per product instructions.
Mounting considerations to reduce wear: keep webbing contact points cushioned with leather or Hypalon strips where straps cross the outer sleeve; route compression straps over the sleeve rather than directly over the waterproof roll to spread load and minimize point abrasion.
Test and fine-tune for minimal sway and stable center of mass
Recommendation: Position the external load so its center of mass is within ±3 cm of the pack’s vertical centerline and secure straps to remove visible slack; acceptable dynamic lateral movement during a steady walk is ≤5 cm, vertical bounce ≤3 cm.
Procedure: 1) Walk 30 m on level ground at your normal pace, then stop and inspect seams, strap anchors and cord locks for shift; 2) Perform 15 steps uphill and 15 downhill at a brisk pace and note any rotational tilt of the harness–tilt > 3° requires adjustment; 3) Run 10 m and do three controlled squats to simulate bounding moves. Repeat after each change.
Tuning rules: if lateral sway > 5 cm, shorten lower compression straps in 2 cm increments until sway is reduced; if rotational tilt > 3°, move the load inward toward the frame by shifting anchor loops closer to the shoulder strap axis or add a transverse stabilizer strap between two lower points to create a cradle. If vertical bounce > 3 cm, add a snug secondary strap under the roll, set so it takes tension at the first step (visible pre-tension ~1–2 cm of elastic stretch).
Small checks: press the pack sideways while standing–side-to-side movement should feel firm with ≤5 mm play; lift pack by the top handle and shake gently–no sloshing or audible zipper rubbing. Use a small spirit level or phone inclinometer on the pack face to confirm tilt 3°.
Final verification: load total mass and perform a 1 km loop including climbs, descents and a 10 m run; inspect hipbelt load transfer and shoulder comfort–if pressure concentrates on one side, rebalance internal contents by shifting 100–300 g increments until symmetry is achieved. For an unrelated practical tip, see how to keep dog off my lawn fence.
