Materials: 25 mm or 38 mm nylon webbing (match original width), bonded polyester thread (Tex 70–140 / 0.5–0.8 mm), needles size 16/90 or 18/110 for machines, awl, sharp scissors, lighter or heat source to seal cut ends, stainless pop rivets 4.8 mm (3/16″) with round washers or solid rivets if available, and an industrial or heavy-duty home sewing machine with a walking foot where possible.
Procedure for a permanent textile repair: trim frayed edges to a clean line, cut replacement webbing 40–50 mm longer than the original gap, overlap raw ends by 25–30 mm. Mark a box 20 mm × 30 mm on the overlap and sew a box-x pattern: straight stitches around the perimeter spaced 2–3 mm apart and two diagonal passes across the box. Use bonded polyester thread, needle size 16–18, stitch length 2.0–2.5 mm, and reduce machine tension slightly if stitches pucker. For hand sewing, use a waxed polyester thread and a saddle stitch with an awl-made hole every 4–5 mm; perform at least four passes through the overlap.
Alternative mechanical method (metal repair): place a 3–4 mm stainless washer on the webbing at the attachment point, punch a hole 6–8 mm from the webbing edge, insert a 4.8 mm pop rivet and clinch with a rivet gun. Use two rivets spaced 20–30 mm apart per attachment point and add a backing plate or thick washer behind fabric for load distribution. Combine rivets with a short sewn box (as above) to prevent shear on the metal fasteners.
Field emergency technique: fold the torn webbing twice to create a 15–20 mm layered cuff, secure with two heavy-duty zip ties placed 20–30 mm apart, then wrap with waterproof tape. If available, run a length of cord or shoelace through the D-ring and tie with a double fisherman knot as a secondary sling. Limit carried weight to 10 kg until a permanent repair is completed and avoid repetitive heavy loading.
Final checks: melt heat-seal cut ends to stop fraying (short bursts with a lighter), inspect stitches or rivets after a 24-hour static load test at 25% of normal carrying weight, then gradually increase to full load. Replace webbing entirely if seams reopen, metal fasteners deform, or stitching concentrates wear within 10 mm of the seam.
Diagnose the break: webbing tear, frayed stitching, or hardware failure
Immediate instruction: isolate the failed area, measure the damaged section in millimetres, photograph both sides, and tag which component type failed (webbing, stitching, or hardware) before attempting any intervention.
Webbing tear – examine material, width and fibre direction. Measure webbing width (e.g., 20mm, 25mm, 38mm) and check edge delamination, transverse cuts and UV bleaching. If more than 30% of the weave across the full width is severed, or the core fibres show white, glassy breakage, replace the webbing rather than attempt a patch. Temporary field stopgaps: fold the webbing back and secure with three zip ties spaced 15–20mm apart, then tape; for polypropylene ends, lightly melt with a lighter to prevent fraying. For permanent replacement use polyester or nylon tubular webbing of the same width and at least equal load rating; sew with bonded nylon/polyester thread (heavy-duty upholstery, e.g., Tex 70–135), needle size 100/16 or 110/18, and a box-x stitch with three passes.
Frayed stitching – count broken stitches over a 25mm run. If there are three or more consecutive failures, restitch the joint. Use bonded nylon/polyester thread and set the machine to 4–5mm stitch length for webbing-to-fabric seams; reinforce with a box-x or bar-tack pattern and a minimum of four passes across each load point. For hand-sewing, use a saddle stitch with doubled bonded thread and stitches no larger than 4mm; tie off with multiple square knots and apply a small drop of clear adhesive designed for textiles.
Hardware failure – inspect buckles, tri-glides, D-rings and rivets for hairline cracks, deformation, corrosion and trapped grit. Test plastic parts for stress whitening and metal parts for rust pitting. Replace cracked acetal buckles with rated acetal or stainless steel alternatives sized to the webbing width. If a rivet has sheared, remove it and use a 5–6mm stainless pop rivet or a small stainless screw with a lock nut; where load is high, prefer a replaceable bolt-and-nut assembly with a steel washer.
Decision metrics: replace webbing when >30% cut, replace stitching when ≥3 sequential stitches fail, replace hardware when any crack or permanent deformation observed. For weight-bearing applications expect connector ratings: general-purpose tri-glides ~1–2 kN, heavy-duty metal fittings 5+ kN; if unsure, choose the higher-rated component.
When sending gear to a repair service, use a tracked courier and verify delivery options; see a comparison of best luggage delivery service europe to usa and protect valuable contents with a tracker such as the best luggage tracker for android without subscription.
Small exterior tests: apply a 5–10 kg static load for 30 seconds to the repaired area and inspect for slippage or new deformations. When testing outdoors near pets or perimeter fences consult guidance on how to dog proof your fence to avoid accidental damage during field trials.
Select replacement parts and tools: webbing, buckles, needles, thread, rivets
Webbing and hardware selection
Use webbing with the same width and comparable thickness as the original; common widths are 19 mm (3/4″), 25 mm (1″), 32 mm (1.25″) and 38 mm (1.5″). For minimal elongation choose polyester; for higher abrasion resistance and slightly more stretch choose nylon; use polypropylene only for light-duty straps. Typical published breaking-strength ranges (approximate): polypropylene 1,200–2,500 lbf, polyester 3,000–6,000 lbf, nylon 3,500–6,000 lbf. Match hardware inner slot to webbing width within ±1 mm.

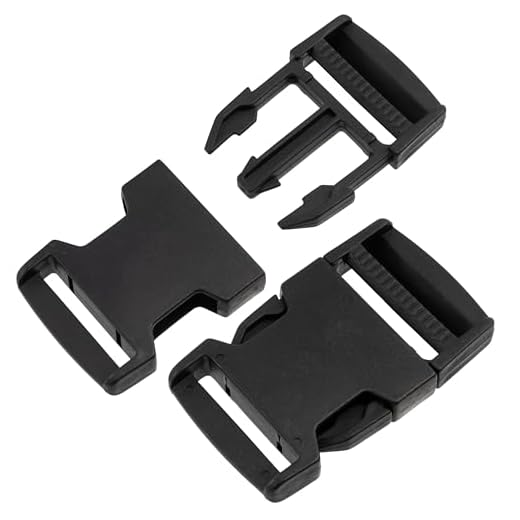

Pick buckle type to match function: side-release (quick-release), tri-glide/ladder (adjustment), cam-lock (secure short-length adjustments) or metal slide cam for high loads. For load-bearing connections prefer stainless-steel (304 or 316) or plated steel; for everyday carry use acetal or reinforced nylon plastics rated for hundreds to low thousands of pounds–check manufacturer rating printed or listed. When replacing D‑rings, choose welded steel or stamped stainless and size the ring so the webbing lays flat without twisting.
Needles, thread, rivets and tools

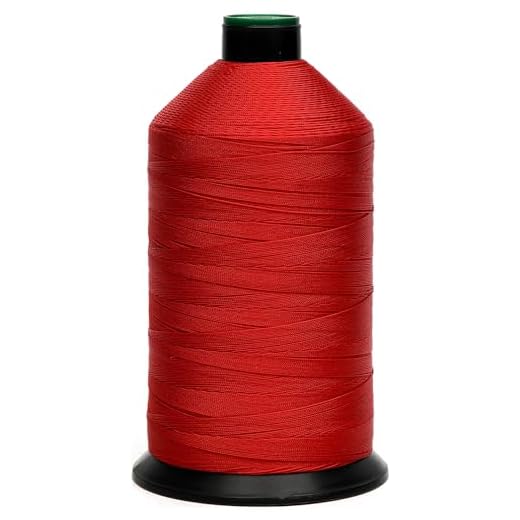

Thread: use bonded nylon or bonded polyester heavy-duty thread with diameter ~0.5–0.8 mm (heavy upholstery range). For hand sewing use heavy waxed thread; for machine sewing use commercial upholstery thread. Needles: for hand work use curved upholstery/leather needles; for domestic machines use size 100/16 or 110/18 heavy-duty needles; for industrial machines use 135/19 or 180/22. Stitch pattern: box-and-X or multiple parallel rows with 3–4 mm stitch length for strength.
Rivets and fasteners: prefer stainless-steel solid rivets or stainless pop rivets sized to application–common diameters 3.2 mm (1/8″) and 4.8 mm (3/16″). For high-load junctions consider M5 or M6 bolts with lock washers and backing plates. Choose rivet length so the mandrel seats fully and there is 1–2 mm tail after setting; drill hole diameter equal to rivet shank or +0.1–0.2 mm for clearance.
Essential tools: heavy-duty sewing machine with walking foot and zigzag capability (or industrial bar-tack machine) for permanent stitches; curved awl, heavy-duty hand needles, thimble, locking pliers; rivet gun or handheld rivet setter plus matching anvil; drill and bits sized to fastener; heat source or hot-knife to fuse synthetic webbing ends; measuring tape and marker. For metal repairs add a small grinder or files and stainless screws/washer set when replacing rivets with bolts.
Quick checks before purchase: confirm webbing tensile rating, measure original hardware inner width, verify thread compatibility with machine, and match rivet diameter to the metal or fabric thickness being joined.
Quick field repair: secure detached webbing with duct tape, zip ties, or paracord
Use 550 paracord (commercial “550 cord”, tensile ≈550 lb) as the primary emergency lashing: run 8–10 ft through the damaged webbing and the anchor point, make three tight figure‑eight wraps, finish with a constrictor knot or a double fisherman on the tails, then cover the knot with 2″ duct tape to lock and protect it.
Required items
Carry: 10–15 ft 550 paracord, 4–6 heavy zip ties (11″ / ~120 lb rating), a 2″ cloth-backed duct tape roll (≥3 ft available), a lighter or small torch, sharp knife or multi‑tool, and a heavy‑eye needle plus polyester thread if sewing is possible.
Field procedures
Paracord lashing – Thread cord through or around both webbing ends and the fixed anchor; pull under moderate tension to seat fibers; make three parallel figure‑eight wraps, cinch tight, secure with a constrictor knot or two half hitches tucked under the last wrap; burn or whip cut ends and tape the whole knot to prevent chafing.
Zip‑tie splice – Overlap the two webbing ends by 1.5–2 in, place a small stiff washer or folded fabric under the head if available, apply three zip ties spaced 0.5–0.75 in apart, tighten sequentially, trim tails to 1–2 mm and lightly melt tips to seal; cover the splice with a tape strip top and bottom to spread pressure.
Duct‑tape wrap – Place a 2–3 in tape backing under the damaged area, fold webbing edges together, wrap 4–6 snug turns with 50% overlap, then add a 6–8 in finish strap across both sides to distribute load; treat tape as non‑load‑bearing for heavy use and limit to light to moderate weights.
Combined method – Use paracord or multiple zip ties as the load‑bearing element and apply duct tape over the assembly to prevent abrasion, seal knot heads, and reduce slippage; always test under increasing load before relying on the repair for full carry weight.
Limits and follow‑up – Consider these solutions temporary: paracord approaches cord rating but connection geometry reduces capacity; zip‑tie and tape assemblies are weakest. Replace with a sewn or riveted webbing repair at the earliest opportunity and inspect the field splice before each use.
Hand-stitch detached webbing using a box-and-X stitch pattern
Tools and materials
Upholstery or sailmaker needle (size 18–22); bonded nylon or waxed polyester thread, doubled (0.6–0.8 mm or two strands of 69 nylon).
Stitching awl or leather punch, ruler, fine-tip marker, clamps or strong tape, small pliers, thimble, and a drop of cyanoacrylate glue or seam sealant.
Procedure
Mark a square roughly equal to webbing width by width (typical: 25 mm × 25 mm / 1″ × 1″) with the square’s inner edge 4–6 mm from the webbing edge.
Punch holes along the square perimeter at 4–6 mm spacing; place holes at each intersection for the diagonals (total holes per side: 4–6 depending on spacing). Keep holes aligned through both layers if sewing to fabric.
Thread the needle with doubled thread and tie a secure overhand knot; position knot on the underside or inside the bag where it will be hidden. Begin at one corner and stitch the outer box first, working clockwise so tension pulls the webbing flat against the bag.
Use a locking backstitch at the start: pass needle through the first hole, then back through the previous hole to form a small locking stitch. Continue around the box with even tension; aim for 6–8 passes total per side for 25 mm webbing (reduce passes for narrower webbing proportionally).
After completing the box, form the X by stitching diagonally between opposite corners. Make two diagonal passes (one per diagonal), keeping tension equal to avoid puckering. For maximum strength, cross each diagonal twice so thread crisscrosses tightly through the center.
Finish with four locking stitches at the final hole, trim thread close, and apply a tiny drop of glue to the knot. If webbing ends are exposed synthetic fiber, carefully melt ends with a lighter to prevent fraying (short, controlled bursts). Add a stainless-steel rivet through the centre of the box if metal reinforcement is available and compatible with the attachment point.
Replace or swap a damaged buckle or adjuster without altering the pack
Use an open-bar or clamp-style replacement sized to the webbing (12 mm / 1/2″, 20 mm / 3/4″, 25 mm / 1″) and rated ≥2 kN, relieve load and rethread the webbing through the new part–no sewing or seam-ripping required.
Parts and tools
- Replacement hardware: open-bar ladder-lock, side-release with removable center bar, or clamp-type triglide; choose acetal or stainless steel with a stated breaking strength ≥2 kN.
- Measure webbing width with a ruler; standard widths: 12 mm (1/2″), 20 mm (3/4″), 25 mm (1″). Match exactly.
- Tools: needle-nose pliers, small flat screwdriver, lighter or heat source for sealing frayed ends, scissors (only if trimming excess tail), small adjustable wrench for metal split-bars.
- Optional: short stainless hose clamp or low-profile zip tie for temporary retention while threading.
Step-by-step swap (two common scenarios)
- Relieve load: remove weight or empty the compartment, loosen the webbing completely so it runs freely through hardware.
- Case A – damaged part sits on the free (unstitched) end:
- Unclip or depress any cam to free the webbing; pull the tail out of the old piece.
- Orient the replacement: for a ladder-lock (adjuster) feed the webbing up through the underside slot, across the center bar, then down through the top slot so the pulled load bites on the center bar.
- For side-release halves, pass the tail through the center bar slot and tension so the tail lays flat; if the tail is short, use a clamp-type buckle that grips without needing a fold.
- Apply full intended load (wear the pack or hang typical gear) and inspect for slippage; if tail slips, add a small stainless zip tie or hose clamp as a non-permanent bite point.
- Case B – damaged part attached to a stitched anchor or sewn loop:
- Do not cut stitching. Select an open-sided replacement or a clamp buckle that installs without removing sewn seams (examples: removable-bar side-release or split-bar metal buckle designed to open).
- Use needle-nose pliers or a small flat screwdriver to open the removable bar, slip the webbing into position, then close the bar and crimp slightly if metal (do not deform the pack fabric).
- If no removable-bar option fits, route the webbing over an anchor point and link with a small connector (steel quick-link or low-profile carabiner) to bypass the damaged piece; ensure connector gate faces away from chafe.
- Load-test as above and check for alignment and twisting; reposition buckle so the webbing lies flat against the center bar under load.
- Final checks:
- Look for any buckles or adjusters that allow the webbing to pass at an angle–rethread until parallel across bars.
- If webbing tail was trimmed, singe the cut nylon lightly to stop fray; press the molten end flat with pliers once cool.
- Wear and load the rig for 10–15 minutes, recheck slippage and stitching near anchors, then re-tighten the tail as needed.
Replace torn webbing: splice ends, heat-seal, and reinforce with rivets or heavy stitching
Overlap replacement webbing 4–6 in (10–15 cm) for load-bearing joins; taper each end to a 1:4 taper (e.g., 1 in taper over 4 in length) and secure with three parallel machine rows plus one zigzag row across the tip using bonded nylon thread (Tex 70–135).
Splice method: clean-cut ends square, then bevel outer fibers with scissors to form 1:4 tapers. Slide tapered end of one piece under the full-width end of the mate with a minimum overlap of 100 mm (4 in) for daypacks and 150 mm (6 in) for heavy loads. Apply a thin bead of urethane fabric cement or contact adhesive along the overlap, clamp 10–15 min, then stitch.
Sewing specs: machine stitch length 3–4 mm; needle sizes 100/16 to 120/19 (industrial or heavy-duty domestic); thread bonded nylon or polyester, Tex 70–135. Use a walking foot or compound presser if available. Stitch pattern: three straight rows spaced 8–12 mm apart running full overlap length, plus a 6–10 mm zigzag across the tapered end to prevent fraying. If no machine, use a sailmaker’s palm and waxed nylon thread in alternating backstitches, minimum 6–8 stitches per 25 mm.
Heat-seal terminals: after trimming to final length, melt thermoplastic webbing tips with a hot knife or propane lighter just long enough to fuse fibers–brief contact, move continuously to avoid large blobs. Immediately compress molten tip between a metal block and pliers to form a flat, slightly rounded cap. Trim excess with sharp scissors and file edges smooth. Work outdoors or with ventilation; avoid inhaling fumes.
Rivet reinforcement: use stainless steel 304 solid or tubular rivets sized 6–7 mm (1/4″–9/32″) shaft diameter with 18–22 mm flat washers under the webbing. Pre-punch holes with a 4–5 mm awl or drill through both webbing layers; space rivets 12–20 mm apart in two staggered rows across the overlap. Minimum rivet count: two rows × three rivets for medium loads, two rows × four rivets for heavy loads or load-bearing connections. Place a scrap backing plate (thin stainless or leather) behind the sewn area to distribute shear.
| Item | Recommended | Notes |
|---|---|---|
| Overlap length | 100–150 mm (4–6 in) | Use longer for heavier loads |
| Rivet diameter | 6–7 mm (1/4″–9/32″) | Stainless 304 preferred |
| Rivet spacing | 12–20 mm | Stagger rows for shear distribution |
| Thread | Bonded nylon/polyester Tex 70–135 | Higher Tex for greater abrasion strength |
| Needle (machine) | 100/16–120/19 | Use heavy-duty or leather needle |
| Stitch length | 3–4 mm | Shorter for higher strength |
Post-repair inspection: load the join to 1.5× the expected working load for 30–60 seconds, inspect for slippage, stitch pull-through, rivet head deformation, and melted-tip separation. If any movement appears, increase overlap, add a row of rivets, or repeat stitching with heavier thread. Conduct a final edge-shear test by applying lateral force to confirm no delamination between webbing layers.
