Immediate action: unload the pack, set the shoulder webbing to slack, then use a 3 mm flathead screwdriver to pry the slider channel open 1–2 mm and free the caught webbing; this simple lever motion typically restores movement in under 10 minutes without replacement.
Tools and consumables: 3 mm flathead screwdriver, needle-nose pliers, side cutters, lighter or hot knife (single-edge temperature 200–300 °C for thermoplastic), sewing awl or heavy-duty machine, heavy needle (90/14), bonded nylon thread (US #69 or Tex 70), spare tri-glide or ladder-lock in matching width (20 mm / 25 mm). Keep a 20–30 mm scrap of webbing for test stitches.
Inspection checklist: identify slider type (single-bar, double-bar, ladder-lock, quick-release). If teeth are bent, use pliers to realign metal bits to within 0.5 mm of original profile; for plastic sliders, check for hairline cracks under bright light and a 5–10x magnifier. If webbing is frayed within 10–15 mm of the slider, cut back 3–5 mm beyond the fray, melt the cut edge briefly and press flat with pliers to prevent unraveling.
Repair sequence for reseating webbing: 1) Release load and lay pack face-up. 2) Thread webbing through slider in the original path: under the first bar, over the centre bar (if present), then tension through the final bar; maintain 15–25 mm of tail for stitching or tucking. 3) If stitching is required, use 4–5 stitches per 10 mm (3–4 mm stitch length), make a 10–12 mm multi-pass bartack with 6–8 passes, or sew a 25–30 mm box with an X inside for shear resistance. 4) Trim tail to 8–12 mm and melt tip to fuse.
Replacement guidance: match slider internal width to webbing nominal width (use 20 mm slider for 19–20 mm webbing, 25 mm slider for 24–25 mm webbing). Choose acetal/Delrin for everyday use, stainless steel or anodized aluminum for heavy loads or marine environments. Typical retail codes: “tri-glide 20 mm acetal” or “ladder-lock 25 mm metal” – verify inner slot measurement before ordering. Test final assembly with a 20–30 kg incremental load on a bench before field use.
Repairing Daypack Webbing Slider
Replace a cracked ladder-lock or slippery tri-glide with a new unit matching the webbing width (common sizes: 10, 15, 20, 25, 38 mm); choose acetal plastic for lightweight carry, stainless steel for high-load applications.
Materials and tools
- Replacement slider (ladder-lock / tri-glide / ladder-stop) sized to existing webbing width
- Heavy-duty scissors or webbing cutter, lighter or heat gun
- Needle for leather/upholstery or heavy-duty sewing machine; bonded nylon or polyester thread (heavy gauge)
- Pliers, flat screwdriver or seam ripper, ruler and permanent marker
- Optional: heat-shrink tubing, zip ties, small stainless split ring, fabric glue or Fray Check
Step-by-step procedure
- Locate the damaged component and note the webbing width and construction (single-pass vs double-pass routing).
- Unthread the webbing: use a screwdriver or seam ripper to lift stitching or remove the old slider; keep orientation so new part follows same path.
- Trim frayed webbing to a straight edge; seal synthetic fibers by briefly passing the cut end near a lighter flame or using a heat gun, then press flat with pliers to prevent bulk.
- Fit the new slider: feed the webbing through the slots following original routing. For double-pass systems, thread so the webbing locks under tension against the center bar.
- If slipping persists, secure the tail with stitching: perform a box-and-cross (box‑X) pattern over 2–3 cm of tail using heavy bonded thread; aim for 8–12 passes per bar tack area or use a zigzag on a heavy machine.
- Reinforce with heat-shrink tubing or a short length of shrink-wrap over the stitched area for abrasion resistance; trim excess tail to 1–2 cm to avoid catching.
- Load-test the repair by hanging a weight approximating expected load and checking for slippage or deformation; retighten stitches or replace the slider if movement is observed.
- Quick temporary options: loop webbing through a zip tie or small stainless split ring as a stop; for immediate emergency use, cord-tie and triple-knot the tail, then melt the knot slightly to lock.
- If webbing width and new hardware mismatch, either replace the entire webbing with a matching-width replacement strap (available by the meter) or add a short adaptor piece stitched securely.
For related outdoor gear selections and shade solutions, consider best market beach umbrella.
Identify the hardware model and pinpoint the failure (slider, ladder lock, or clasp)
Inspect material, perform a steady 5–10 kgf (11–22 lbf) pull test, and measure webbing width vs. slot width (common widths: 10 mm, 15 mm, 20 mm; tolerance ±1 mm) to determine whether the unit is a slider, ladder lock, or clasp and where it fails.
Look for these immediate indicators: cracked plastic near bars indicates slider fatigue; rounded or worn serrations and bent rungs indicate ladder lock wear; loose or non-returning latch, missing spring, or bent pawl indicate clasp failure. Use a 10× loupe or magnifying glass to spot hairline fractures and stress whitening on polymer parts.
| Model | Construction clues | Failure symptoms | Quick diagnostic test | Probable root cause |
|---|---|---|---|---|
| Slider | Single piece or two-piece with central bar; symmetrical slots; usually smooth surfaces | Webbing slips under load, slots elongated, central bar cracked, edges rounded | Thread webbing, pull 5–10 kgf; if slippage occurs without webbing damage, inspect bar for flex or cracks; measure slot elongation >1 mm | Material fatigue, UV/brittle plastic, or deformation from overload |
| Ladder lock | Serrated/ridged clamping face, multiple rungs or teeth, thicker body to bite webbing | Clamping face worn smooth, teeth chipped, webbing compressed or frayed at contact, slippage only under higher loads | Insert webbing, pull at 90° and along length with 5–15 kgf; inspect tooth profile–loss of 0.5 mm height reduces bite significantly | Abrasion, repeated heavy loading, tooth breakage or manufacturing soft plastic |
| Clasp | Hinge or sprung latch, visible pin or rivet, metal or polymer spring mechanism | Latch fails to engage, spring does not return, loose rivet, rattling, intermittent release under load | Operate latch 10–20 cycles; apply 5–10 kgf while latched–if opens or feels spongy, examine spring and pivot pin for corrosion or wear | Broken/missing spring, bent latch, pin shear or corrosion, worn mating surfaces |
Document measurements and photographs of defects (slot widening, tooth height loss, crack length). Label webbing width and measured gap sizes; these data points determine whether component replacement or webbing re-route is required.
Temporary field repairs using paracord, zip ties, or safety pins
Paracord splice and load-bearing substitute
Use 550 cord (Type III) doubled for a temporary load-bearing replacement: cut two 1.8 m (6 ft) lengths, thread both through the hardware point, form a tight cow hitch or girth hitch around the bar, then secure each free end with a double fisherman’s knot. Expect a single 550 cord to be rated ~550 lb (250 kg); doubling yields roughly 1,100 lb (500 kg) theoretical strength but allow a safety margin–treat as adequate for carrying the pack but replace the original component at first opportunity. Melt the cut ends with a lighter and press flat to prevent fray; wrap the splice area with a 5–10 cm strip of heavy-duty tape (duct or Gorilla) to reduce abrasion against metal parts.
When threading through narrow buckles or sliders, use a lead with a small overhand knot at the cord tip or a short stiffened core (insulation-shrunk end) to feed smoothly. For adjustable-length needs, form a stopper loop with a figure-eight follow-through on the free tail and trim to ~10 mm leaving the melted end pressed against the knot.
Zip ties and safety pins – rapid stabilization and retention
For emergency lashings, choose heavy-duty nylon cable ties 4.8 mm wide (approx. 120 lb/55 kg tensile) or larger; use two to three in parallel across the damaged area and space them 1–2 cm apart. Thread ties so the head sits away from rubbing surfaces, cinch firmly, cut flush, then melt the cut tips briefly to prevent snagging. Place a short leather or fabric patch under the ties to spread load and stop cutting into the remaining webbing.
Use large galvanized or stainless safety pins only for low-load retention or to hold webbing alignment while other measures are applied: insert pins through multiple webbing layers and back them with a small washer or rigid backing to prevent pull-through; use at least two pins in parallel to share load. Avoid relying on pins alone for primary load support; they serve best as secondary retention paired with paracord or cable ties.
Combination tactics: employ paracord for primary load-bearing, secure position with zip ties, and use safety pins to keep loose ends from slipping. Replace the temporary assembly with factory parts as soon as possible; inspect knots, ties, and pin points after every long march or heavy load and retighten or reapply protective tape if abrasion or slippage appears.
Replace a broken slider buckle: measuring, tools, and step-by-step swap
Match the replacement slider to the webbing width, slot style (single-bar, center-bar, or double-bar) and material; pick acetal plastic for weight and corrosion resistance or stainless steel for high-abrasion/heat environments, and specify a tensile rating at least 1.5× the original published load.
Measurements to record before ordering
- Webbing nominal width: measure flat across the face to nearest 0.5 mm (common sizes: 12 mm, 15 mm, 20 mm, 25 mm, 38 mm).
- Slot internal width: digital calipers, measure clear gap where webbing passes; tolerance ±0.3 mm matters for smooth threading.
- Webbing thickness: lay calipers across edge; heavy duty = 3.5–6 mm, lightweight = 1–2.5 mm.
- Slot configuration: single-slot (one pass), center-bar (creates friction/locking), ladder-lock (teeth or angled bar) – photograph and note orientation of the loaded side.
- Outer dimensions: overall width and height if mounting clearance is tight (measure housing envelope).
- Mark existing load rating or moulded part number on the old slider if present; use image when ordering replacements.
Tools & materials checklist
- Digital calipers and 30 cm steel ruler.
- Replacement slider(s) matched to measurements (acetal or stainless steel).
- Seam ripper or small chisel for opening sewn loops; bench vise optional.

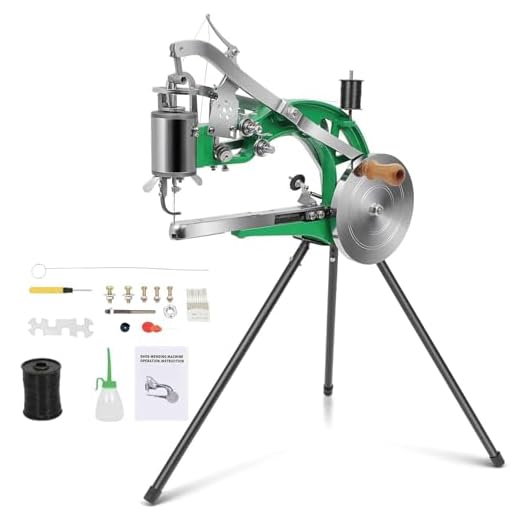

- Heavy-duty sewing machine (post-bed) or hand tools: sailmaker needle, palm thimble.
- Bonded polyester or bonded nylon thread, heavy weight (approx. Tex 70–135 / upholstery thread #69–92).
- Rivet set and stainless steel flat-head rivets (if using mechanical fastening) – common rivet shank 5–6 mm diameter.
- Heat source: lighter or heat gun for sealing trimmed webbing ends; lighter recommended for small melts.
- Scissors, pliers, small hammer, marker, and clamp to hold webbing while sewing or riveting.
- Optional: bar-tack machine or zig-zag sewing foot for stronger commercial results.
Step-by-step swap (permanent repair)
- Remove the old slider: unpick stitches with a seam ripper, or cut any sewn loop while leaving as much intact webbing as possible to preserve length.
- Prepare webbing end: trim frayed edge square; briefly melt edge with lighter flame and press flat with pliers to prevent unraveling.
- Dry-fit new slider: thread webbing through the new part following the original path (load-facing orientation matters). Confirm sliding action and that the webbing sits flush in the slot.
- Layout sewing area: allow a minimum of 25 mm of sewn length from the edge of the slider to the end of the sewn box; mark a rectangle 25 mm × 12 mm for the box-X pattern.
- Sewing method: using heavy bonded thread, sew a box with an X inside (box-X). Stitch length 3–4 mm; run at least three passes across each diagonal for hand or small-machine work. If using a commercial bar-tack, program 6–8 passes per tack location.
- Mechanical alternative: if sewing is not possible, form a folded webbing tab and secure with 2–3 stainless steel rivets placed 8–10 mm apart; use a backing plate behind thin fabric to spread load.
- Trim any excess tail to leave 10–15 mm beyond the final stitch line; seal cut edge again with a short flame and press flat. Avoid over-melting – a 1–2 second approach is usually sufficient.
- Inspect: check thread knots, rivet heads, and slider seating. Pull test: apply 1.5–2× expected working load for 30 seconds, then cycle the mechanism 10× under load to confirm no slippage or loosening.
- Final adjustments: if webbing rides poorly through the new part, recheck slot width vs thickness; if binding occurs, select a slider with a slightly larger internal clearance or file sharp edges on stainless parts carefully.
For parts and tools, order replacements from reputable suppliers and compare part numbers or upload your measurement photos to vendor listings; extra reading on unrelated outdoor gear selection: best mens umbrella in the world. For workshop appliance comparison while sourcing tools, see are there any british makes of fridge freezers.
Sew a reinforced webbing loop to bypass a broken length-control buckle
Materials & tools
Heavy-duty polyester or nylon webbing from the same assembly (use the existing piece if intact); spare 1–3 cm if cutting is required.
Bonded nylon or polyester upholstery thread, 0.5–1 mm diameter (Tex ~70–90); sailmaker’s waxed thread acceptable for handwork.
Needles: industrial/house sewing machine capable of handling thick webbing (90/14 or 110/18 needle) or hand sewing needles for heavy canvas/sail (size 16–20).
Optional: lighter or heat source for edge sealing, clamp or vice to hold layers, awl or small chisel for pre-punching stitch holes if sewing by hand.
Procedure
1. Measure desired loop: fold webbing to create a doubled section that leaves 1–2 in (25–50 mm) of usable adjustment beyond the sewn line; 1.5 in (40 mm) is a good balance between security and range.
2. Trim frayed ends cleanly and melt raw synthetic cut edges briefly to stop unraveling; perform melting in a ventilated area and press softened edge flat with a non-stick surface.
3. Stack layers so the load path runs through the sewn box: webbing folded over itself with the load-bearing edge aligned. The sewn area should be at least 1 in (25 mm) long along the fold and 12–15 mm wide for the box.
4. Machine stitch: use straight stitches for perimeter and an X across the box. Settings: heavy needle, thread tension higher than normal, zigzag not required for box-X; straight-stitch length 2–3 mm. Repeat the X pattern twice if machine allows.
5. Hand stitch (if no machine): pre-punch holes with awl spaced 3–4 mm. Use waxed thread and perform a box with an X inside; make 6–10 passes over each leg of the X and lock each pass with a tight backstitch. End with a knot buried between layers.
6. Add bar-tacks at both ends of the sewn box: 6–10 dense stitches across 6–8 mm to prevent seam spread under shock loads. If doing by machine, run multiple straight passes across the same line; for hand, loop around and jam stitches tight.
7. Trim excess thread, melt knots slightly and press flat. Pull test: apply repeated jerks and sustained load approximating expected use weight; inspect for stitch movement, slippage, or tearing. If any movement occurs, increase stitch density or enlarge the sewn box by 5–10 mm.
8. Final routing: feed the remaining free webbing through the original buckle opening or route it behind any trim so the loop acts as a permanent limiter; ensure edges don’t rub sharp seams.
Stop a slipping webbing: reweaving and heat-staking techniques
Re-thread the webbing so you have a doubled load-bearing span of 3–5 cm (1.25–2 in) under the buckle/tri‑glide, then heat-stake the remaining tail into a compact fused bead using a temperature-controlled soldering iron for repeatable results.
Reweaving procedure: trim frayed end straight across, lightly singe or apply a drop of fray‑seal to the cut edge, feed the webbing through the first slot, loop it back under the center bar and pass the tail through the final slot so the tensioned line runs over two layers. For heavy loads, add a second pass (creating three or four layers under the center bar) and leave 7–10 cm (3–4 in) tail before finishing.
Stitching option: after reweaving, secure the tail with a bar‑tack or a 25×25 mm box‑X stitch placed 5–10 mm from the fused zone. Use bonded polyester or nylon thread, size 69–92 (tex 70–135) and 10–12 stitches per inch (4–5 per cm) for a durable sewn lock. If using a domestic machine, switch to a heavy‑duty needle (size 16/100 or 18/110) and reinforce with two passes.
Heat-staking specifics by material: polypropylene (melting ~160–170 °C) forms a hard, fast bead – a lighter or hot knife on low will work; nylon (melting ~215–260 °C) shrinks first and requires a soldering iron set to ~200–250 °C, pressed 2–4 seconds against a small metal backing to form a rounded bead; polyester (softens around 240–260 °C) responds well to a heat gun at 200–300 °C or a hot knife for a smooth seal. Always test on a scrap piece to dial temperature and contact time.
Tool list: temperature‑controlled soldering iron or hot knife, heat gun with temperature control, metal backing plate or spoon for shaping, pliers or clothespins for clamping, utility scissors, fray-seal (e.g., Fray Check) and heavy-duty sewing machine or curved needle with waxed thread for hand bar‑tacks.
Application technique: clamp the webbing so the tail is flat and cannot retract, apply the heated tip to the tail edge while pressing the metal backing against the opposite face to produce a uniform bead. Aim for a bead diameter of 3–6 mm; too large will foul the buckle, too small may deform under load. Allow 20–30 seconds to cool before flexing or trimming excess.
Troubleshooting: if the webbing still slips, increase doubled-back length by 2–3 cm, add a sewn bar‑tack directly behind the bead, or create a second fused ridge 1–1.5 cm from the first. For very slick polypropylene or coated webbings, rely more on additional passes and sewn reinforcement rather than a single melt bead.
Safety notes: work in a ventilated area, use heat-resistant gloves and eye protection, avoid open flames near synthetic materials, and dispose of fumes/slag responsibly. When uncertain about material type, perform a small test cut to observe melting behavior before treating the final piece.
Choose and fit a compatible replacement buckle for your webbing width
Select a replacement buckle whose inner slot width equals the flat webbing width with no more than +1 mm clearance; for 1″ webbing use a 25 mm buckle, for 3/4″ use ~19 mm, for 5/8″ use ~16 mm, for 1/2″ use ~13 mm, and for 3/8″ use ~10 mm.
Measure and match dimensions
Measure webbing flat across the edges (not the folded or rolled thickness). Also measure thickness; common thicknesses: 1.0–1.5 mm (light nylon/polypropylene), 1.8–2.5 mm (standard polyester/nylon), 3.0–4.0 mm (heavy load webbing). Choose a buckle slot depth that clears thickness +0.5 mm. If your webbing measures 24–25 mm, choose 25 mm; if it measures 25.5–26.5 mm consider a 26 mm or a 1″ nominal part only if listed by manufacturer.
Material compatibility: use acetal (POM) or nylon buckles for general-purpose wear and moderate loads; use stainless steel or aluminum when expected loads exceed ~2000 N or for metal-to-metal abrasion resistance. For slippery webbing (slick-woven nylon) pick designs with cam teeth or serrated bars; for low-stretch polyester a smooth double-bar ladder will hold better.
Fit and test procedure
1) Verify inner slot width and depth on the replacement part before thread-through. 2) Trim any fray, apply a small melt bead or a bar-tack stitch on the webbing end if it will be free. 3) Thread the webbing flat through the buckle: feed under the load-facing bar then over the return bar for ladder-type pieces so the pulling force presses the webbing into the bar. For cam-style pieces orient the teeth toward the incoming load. 4) Pull to seat and apply a test load equal to ~50% of expected working load; check for visible slippage or deformation. 5) If minor slot tightness prevents threading, remove up to 0.5 mm from the slot edges with a round file or low-speed rotary tool–do not remove more or the part may be weakened.
Verify manufacturer rated working load if available; where rating is unknown, treat plastic parts as light/medium duty and use metal hardware for repeated heavy loading. Perform a final stitch or heat-stake on any routed free end you want permanently secured.
