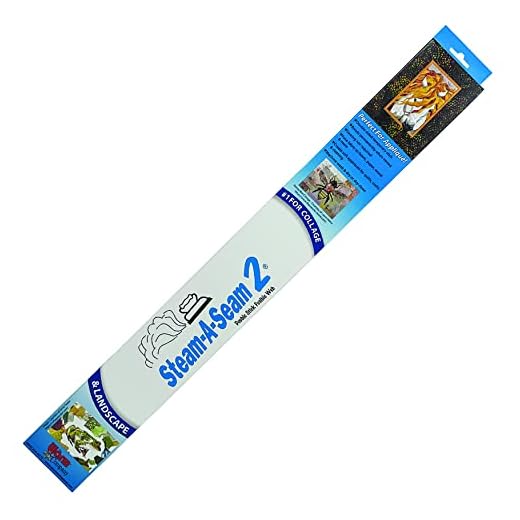

Immediate recommendation: use a heat-activated fusible web set to 150–160°C (300–320°F) for 20–25 seconds through a damp cotton press cloth, let cool under a flat weight for 90–120 seconds, then reinforce the perimeter with a lockstitch using polyester thread and a 100/16 sewing machine needle or a heavy-duty hand needle.
Surface preparation: clean the area with 70% isopropyl alcohol, dry fully, then lightly abrade the coating with 320–400 grit sandpaper or a scouring pad to improve mechanical bite. Mark placement with tailor’s chalk and secure the emblem with low-tack painter’s tape or a few temporary binder clips to prevent shifting during pressing.
Adhesive and pressing details: choose a fusible web rated for synthetic fabrics or a solvent-free fabric adhesive labeled for coated fabrics. Use medium pressure from an iron or heat press (no steam) at 150–160°C for 20–25 seconds; if the emblem has plastic backing reduce to 130–140°C and increase time to 30–40 seconds in short bursts. Cover with a cotton cloth to avoid direct contact, and cool under weight for 1–2 minutes to set the bond.
Sewing reinforcement and machine settings: use bonded polyester or nylon thread; set stitch length to 2–3 mm for a straight stitch or a narrow zigzag (width 2–3 mm, length 0.8–1.2 mm) to allow some flex. Fit a walking foot if accessible, place a tear-away stabilizer beneath the substrate to stop puckering, and use needle 90/14–100/16. For hand finishing, use a waxed polyester thread with 2–3 mm spacing and backstitch pads at start/end. Wait 24 hours before laundering; wash cold (≤30°C) on a gentle cycle and air-dry to preserve adhesive integrity.
Choose compatible emblem type and backing for synthetic gear
Use sew-on embroidered emblems with bonded polyester backing for ripstop synthetic fabric; for removable designs choose hook-and-loop-backed badges with the loop side machine-stitched to the fabric and the hook side attached to the emblem.
- Sew-on embroidered – Best long-term adhesion. Use a 90/14 or 100/16 universal or jeans needle, bonded polyester or nylon thread (Tex 70–92), and 2.5–3.0 mm stitch length. Stitch style: box-X or zigzag around the perimeter for high-wear areas.
- Hook-and-loop (Velcro) – Removable and serviceable. Sew the soft (loop) strip to the bag body with a reinforced box stitch; glue the hook to the emblem if sewing through the emblem face is impossible. Use loop tape 25–50 mm wide for even load distribution.
- Fusible/iron-on – Use only low-temperature fusible web rated for synthetic fabrics and test on scrap first. Recommended bonding temperature range: approximately 120–140°C for short press cycles; always use a Teflon or cotton pressing cloth and avoid direct, prolonged heat exposure.
- Adhesive-backed (permanent) – Use industrial adhesives designed for textiles (e.g., 3M fabric bonding adhesives or double-sided VHB for rigid emblems). Expect reduced flexibility; apply adhesive to clean, oil-free surface and clamp for 24 hours. Avoid generic hot-melt glues for long-term outdoor use.
- PVC/rubber emblems – Durable and weather-resistant. Prefer models with sewn perimeter or a Velcro backing. If stitching, use a leather/jeans needle and reinforce with bar-tacks at corners.
- Weldable TPU-backed – For professional repairs use RF or ultrasonic welding equipment and TPU-backed emblems designed for thermal bonding to synthetic fabrics.
Practical checks before fastening
- Perform a temperature and adhesion test on a scrap piece of the same material before final application.
- Clean the surface with isopropyl alcohol or mild detergent and allow to dry fully; for heavy soiling consider rinsing with a low-pressure cleaner and a suitable detergent – see best auto soap for pressure washer for suitable soaps (use low pressure and avoid fabric damage).
- Match emblem flexibility to the textile: thin, soft backing for flexible panels; rigid backing only for small, stiff badges.
- If laundering will be frequent, prefer sewn or Velcro attachments; avoid adhesives that degrade at 30–40°C wash cycles.
Stitching and durability tips
- Use bonded polyester thread for UV and wash resistance; tie off with a small bar-tack at start and finish to prevent unravelling.
- Reinforce corners with bartacks or a small rivet when the emblem is exposed to tensile loads.
- For edges prone to fraying, finish with a narrow merrowed border or apply clear flexible seam sealant sparingly.
Prepare and mark the pack surface for exact placement
Empty all compartments and fasten zippers; lay the unit flat on a stable table and stuff the main cavity with a folded towel or foam block so the front panel matches its in-use shape.
Remove dust and oils with a lint roller, then wipe the area with a cloth dampened with mild dish soap and water; rinse with a clean damp cloth and allow to air dry 10–20 minutes. For adhesive-backed emblems use a 70% isopropyl wipe to degrease, then dry completely.
Mark the panel centerline by aligning a tape measure with the top handle base and running a straight line down the middle. For horizontal placement measure from the top seam: typical upper-center location = 6–8 cm (2.5–3 in) below the top seam; mid-panel = 12–15 cm (5–6 in); lower pocket area = 20–25 cm (8–10 in). Adjust these distances to suit emblem scale.
Create a paper template matching the emblem outline. Hold the template in position and secure with low-tack painter’s tape; step back and check alignment from eye level and from 45° angles to verify it looks straight on the curved surface.
Use a fabric-safe marking tool: tailor’s chalk for temporary marks, or a water-erasable pen for more precise lines. Test any marker on an inconspicuous seam for 24 hours to confirm removability and no discoloration.
Keep a clearance of at least 6 mm (1/4 in) from sewn seams and 25 mm (1 in) from zipper teeth and sliders to avoid interference. When locating near logos or brand tags leave a minimum gap of 20 mm (3/4 in) so both elements remain visible.
For sew-on emblems use straight pins or fabric clips around the template edge to hold position; if the interior has a waterproof lining, avoid pins through the lining and use temporary basting stitches instead. For iron-on or heat-activated backings place a press-cloth and test a 5–10 second heat application on a scrap from the same material before final fixing.
Final check: sit the pack on a shoulder for visual confirmation of placement, then photograph from 1–2 m (3–6 ft) to confirm symmetry and scale. Only proceed to permanent attachment after these visual and test verifications.
Needles, thread choice, and stitch techniques
Recommended setup: machine needle 90/14–110/18 (topstitch/jeans); hand needles: curved upholstery (5–7 in), harness or glovers size 8–12; thread: bonded polyester or bonded polyamide, 210–420 denier (Tex 70–135) for machine work, waxed polyester 0.6–1.0 mm or bonded nylon Ritza 25 for handwork.
Needle selection and preparation
For medium-weight synthetic ripstop use 90/14; for heavy substrates choose 100/16–110/18. Use microtex/sharp 70/10 only on thin laminates. Replace needles after 4–6 hours of heavy sewing or at first sign of skipped stitches. For dense seams or layered emblems use a topstitch/jeans point (strong shank, slightly rounded tip) to penetrate coatings without shredding fibers. For hand application, pre-punch holes with a 1.0–1.5 mm awl or small leather punch spaced 2–3 mm apart to keep stitch tension even; pull needles with pliers when passing through multiple layers.
Thread choices and stitch parameters
Bonded polyester: abrasion- and UV-resistant, minimal stretching – use 210–420 denier for general use. Bonded polyamide (polyamide-coated) offers higher abrasion resistance but swells with water; reserve for high-wear edges. For visible decorative borders choose 40–60 wt upholstery thread; for invisible reinforcement choose 60–100 wt heavy-duty polyester. Machine stitch settings: straight stitch length 2.5–3.5 mm for permanent attachment; topstitch tension slightly higher than garment tension to flatten the seam. Satin/zigzag border: width 3–4 mm, length 0.8–1.5 mm. Hand-stitch techniques: backstitch every 2–3 mm for maximum strength; whipstitch with 2–3 mm bites for edge wrapping; saddle stitch (two needles) for critical load points. Reinforce each corner or stress point with a 3–5 mm bartack or three tight backstitches. Finish thread ends by tying with a surgeon’s knot, trimming to 2–3 mm, and applying a tiny drop of clear solvent-based adhesive or heat-seal to prevent fray (test on scrap first).
Apply adhesive or heat-activated emblems without melting or staining
Set a dry iron to a low synthetic setting: 110–130°C (230–266°F). Use a Teflon sheet or doubled cotton press cloth between heat source and emblem; press in short pulses (8–12 seconds each), lifting the iron between pulses to avoid local overheating. Test on a scrap of the same synthetic fabric first to confirm temperature, time and peel behavior.
Temperature, timing and peel technique
For a household iron: use 110–130°C, medium pressure, 2–3 pulses. For a heat press: set to ~125°C (257°F) with light pressure for 8–15 seconds. Do not use steam. Follow the manufacturer’s peel instruction: if label says warm-peel, remove backing after brief cooling; if unknown, wait until fully cool before peeling to reduce edge lifting. If bond is partial, reapply 3–6 second pulses rather than one long press.
Surface protection, backing and adhesive choices
Insert a rigid backing (cardboard, plastic cutting board or thin acrylic) inside the bag to prevent adhesive bleed-through and to keep the area flat. Protect adjacent fabric with a Teflon or parchment barrier; avoid cling film and wax paper that can melt or transfer. Avoid hot-melt glues and solvent contact cements that can dissolve or discolor synthetic fibers; choose fusible web or iron-on adhesive specifically labeled for synthetic/polyamide or polyester fabrics. For adhesives with bleed risk, place a release sheet under the emblem and use minimal heat/short pulses. After bonding, place a flat weight (book or clamp) on the emblem while it cools for 2–3 minutes to improve adhesion and reduce wrinkling.
