Immediate recommendation: remove the damaged portion and replace with 25 mm or 38 mm heavy-duty nylon webbing, then secure using a 40 × 25 mm box‑X stitch pattern with bonded nylon or polyester UV-resistant thread (tex 80–120) at a 3 mm stitch length; use a heavy-duty sewing machine fitted with a 100–120 (16–19) needle or hand-sew with waxed polyester and a curved upholstery needle, singe cut edges with a lighter and seal with a urethane seam adhesive such as Gear Aid Seam Grip.
Required tools and components: sharp shears, awl, heavy-duty machine or heavy needles, thimble, bonded nylon/polyester thread, replacement webbing matching original width, stainless-steel tri-glide or ladder lock sized to the webbing (1″ = 25 mm, 1.5″ = 38 mm), 6 mm rivets (if chosen), and Tenacious Tape or equivalent patch for backing to spread load across the repair area.
Procedure details: fold the new webbing under the hardware with a 20–30 mm overlap; secure with three tacking stitches across the fold, then stitch the rectangular box and sew an X across it. For 25 mm webbing use a box approximately 25 × 40 mm and run multiple parallel passes at the edges for reinforcement. Machine-sewn box‑X at 3 mm stitch length yields near-original tensile strength; hand-sewn work should aim for 6–8 stitches per 25 mm and thoroughly waxed thread to reduce abrasion.
Finishing and temporary options: trim thread tails to 5–7 mm, melt and flatten raw webbing ends, coat stitch rows with urethane seam adhesive and allow 24 hours to cure. For an immediate stopgap, wrap the joint with Tenacious Tape and add a folded-over clamp or stainless hose clamps to share load until a sewn restoration is completed.
Identify sling failure: ripped webbing, split seam, frayed end, or broken hardware
If a tear in webbing measures over 10 mm or spans more than 20% of the woven width, stop using the item and replace the webbing with material rated at least 1,500 N tensile strength.
Visual checks: inspect attachment points, welds and stitch lines under bright light. Use calipers for tear width, ruler for seam opening, and a 10x loupe for thread breakage. Smell can detect polyester melting from heat damage; discoloration without fibre distortion indicates UV degradation rather than acute overload.
Simple field tests: apply a steady hand-pull equal to the expected carried load (or 50 kgf for typical daypack loads) while watching for progressive elongation, new fibers separating, or buckle movement. Do not load beyond safe limits for a makeshift test.
| Failure mode | Diagnostic sign | Field test | Immediate action | Replacement spec |
|---|---|---|---|---|
| Ripped webbing | Tear >10 mm; fibers cut across woven width; threadbare center | Measure tear; flex webbing to see progressive split | Stop carrying loads; splice or replace webbing segment | 25–50 mm polyester or nylon webbing, min 1,500 N tensile |
| Split seam | Seam opening >8 mm or 3+ consecutive broken stitches; fabric puckering | Run fingernail along stitch line; probe for missing thread | Re-stitch with heavy thread or reinforce with patch; avoid single-line repair | Bonded nylon thread (Tex 70 / upholstery), 3–4 mm stitch length, double backstitch 20 mm each end |
| Frayed end | Loose fibers >15% of width, unraveling past the sewn fold | Trim 4–6 mm and check for continued unravelling under tension | Trim, heat-seal synthetic webbing or bind with whipping, then resew with folded 20 mm overlap | Heat-seal finish or high-temp adhesive; sew box-x pattern across 20 mm |
| Broken hardware | Cracks, bent frames, gate failure, corrosion pitting >10% surface | Operate buckles, sliders and D-rings under load; listen for clicks/slips | Remove from service; replace hardware rather than attempting reshaping | Acetal side-release or stainless steel metal fittings rated ≥2,000 N; match width to webbing |
For long-term component choices, prefer UV-stabilized polyester for webbing in wet environments and stainless or acetal hardware depending on salt exposure. For gear upgrades and water-resistant configurations see best waterproof tactical backpack; for shade- and canopy-grade fittings consult best commercial umbrella quote.
Field emergency fix: duct tape, zip ties, paracord or a carabiner to restore carry function
Immediate action: convert available items into a temporary load-bearing connection that you test under gradual load before moving; prioritize Type III paracord (550 cord) or multiple heavy-duty zip ties with duct tape as reinforcement, and use a locking carabiner as a secure connector when available. Expect short-term safe use roughly up to the lowest-rated component (paracord ~550 lb / 250 kg; common heavy-duty zip ties 120–250 lb / 55–113 kg each; locking carabiners often ≥5 kN ≈ 1,124 lb). Reduce carried weight and avoid dynamic forces (no running, jumping or sudden jerks).
Paracord replacement – measurements and knots
Cut 2.5–3.0 m (8–10 ft) of Type III paracord for a single shoulder sling; use 5–6 m (16–20 ft) if replacing both sides or creating a padded loop. For a fixed loop around a metal anchor or D-ring: tie a bowline, then add a single overhand on the tail as a backup. To join two cord ends into one continuous loop use a double fisherman’s knot (dress tightly and trim tails to 10–15 mm / 3/8–5/8 in). To attach cord to a sewn loop or webbing slot, use a girth hitch (wrap and pass tail back through) and tape the junction with 4–6 wraps of duct tape to prevent slippage. Remember total system strength equals the weakest link – if sewn seams or hardware are damaged, reduce load accordingly.
Zip ties, duct tape and carabiner techniques

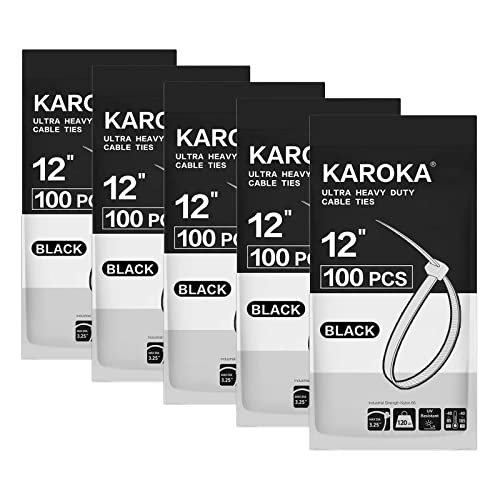

Zip ties: thread at least three heavy-duty ties (8–12″) in parallel through the original attachment points or around the D-ring; tighten fully, cut tails flush and melt or file ends smooth. Combine ties in two staggered rows for redundancy. Duct tape: apply 6–8 tight wraps over the junction, overlap each wrap by ~50%, extend tape 50–75 mm (2–3 in) onto intact webbing on both sides to distribute load; use tape as reinforcement, not the primary load bearer. Carabiner: if a locking carabiner is available, use it as the main connector – clip paracord loop or doubled webbing through the carabiner and lock; if original hardware is shattered, route webbing or cord through the carabiner and secure with zip ties plus tape. For flat webbing ends, form a water knot if you can splice; otherwise fold webbing through a carabiner and secure with multiple zip ties and tape, then test cautiously.
Final checks: after assembly, hang a gradual load (hand weight, then body weight) and inspect for slip, abrasion, heat (from melted zip ties) or squeezed tape failure. Limit the load to as low as practical and arrange for a full replacement of damaged components at the next opportunity.
Replace nylon webbing: measure, cut, melt edges and sew a new carrying band by hand or machine
Overlap new nylon webbing 1.5 in (38 mm); use bonded nylon or polyester upholstery thread, a 100/16–110/18 needle (industrial users: 150/19), stitch length 3.0–3.5 mm, and secure with a box-and-cross (box‑X) pattern; melt cut edges with a hot knife or soldering iron and finish by compressing the bead with pliers.
Measuring, cutting and finishing the ends
Measure existing length under load and add 1.5–2.0 in (38–50 mm) for overlap plus 0.5 in (12 mm) for trimming. Cut with a hot knife for a sealed edge; if using scissors, immediately singe the cut edge with a butane lighter or a soldering iron until the filaments fuse, then press the molten edge onto a nonstick surface or between pliers to form a smooth bead. Work outdoors or with ventilation; wear heat-resistant gloves and eye protection. If you need to trim precisely, mark with a pen and cut on a straight edge. For webs narrower than 1 in (25 mm) reduce overlap to 1.0 in (25 mm).
Machine and hand stitching specifications
Machine: fit a walking foot or heavy-duty presser foot, install 100/16 or 110/18 jeans/denim needle, set thread to bonded nylon/upholstery polyester (Tex 70–90 or equivalent), stitch length 3.0–3.5 mm, heavier tension than cloth use, and sew a rectangular perimeter close to the overlap (3–6 mm from edges) then stitch two diagonals corner-to-corner to form the box‑X. Backstitch or use 8–10 reverse stitches at start/end; repeat the box‑X once more for maximum strength or use a triple straight stitch if available.
Hand: use waxed bonded nylon or polyester thread, a sailmaker’s curved needle or heavy straight upholstery needle, and pre-punch holes with a 3–4 mm awl spacing across the overlap. Execute a box‑X with locked passes: run perimeter stitches 3–6 mm from the exposed edges, then cross diagonals; make 6–10 locking passes per line (or double the thread) so each stitch path is redundant. Finish with a surgeon’s knot and two hidden lock stitches through the webbing layers, then melt the knot end and press into the weave.
Tool checklist: hot knife or soldering iron, sharp scissors, heat-resistant pliers, walking foot (or heavy-duty machine), 100/16–110/18 needles, bonded upholstery thread, awl, gloves and ventilation. After heat work ventilate the area and clean residue; for unrelated tank maintenance products see best ammonia remover for fish tank.
Re-stitch a torn seam: prepare edges, use backstitch or bar-tack with heavy thread
Immediate recommendation

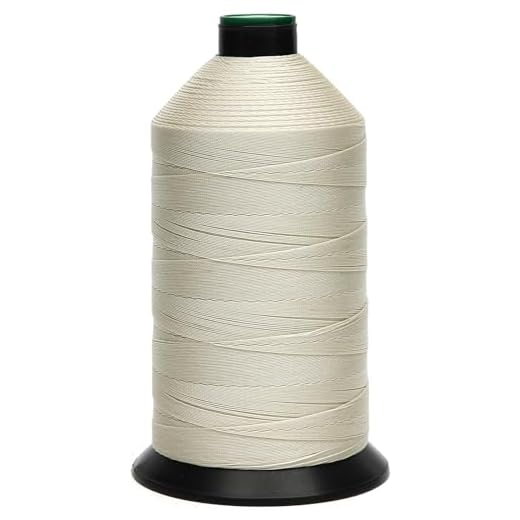

Use bonded nylon or bonded polyester upholstery thread (Tex 70–120, roughly 0.6–1.2 mm diameter), a sailmaker’s or heavy upholstery needle, and double the thread for load-bearing seams; aim for 3–4 mm stitch length for hand work or a 100/16–110/18 machine needle with a walking foot.
Preparation of edges
Trim ragged fibers close to the textile with sharp scissors, remove remaining loose threads with a seam ripper, then align the fabric edges flat and even. For synthetic webbing ends, fuse the cut edge by briefly passing a lighter 5–10 mm from the fibers for 1.5–3 seconds; press molten edge flat with pliers or a metal flat surface while still warm. If the seam had a reinforcement patch or lining, peel back only as much as needed to expose solid material for new stitches (3–12 mm of overlap).
Clamp the layers using parallel spring clamps, binder clips or Krey clamps; avoid pins that distort heavy webbing. Mark two parallel stitch lines spaced 4–6 mm apart with chalk or a washable marker when duplicate rows are required.
Punch starter holes for very dense nylon webbing with an awl spaced 3–4 mm apart if hand-sewing is planned; this keeps the needle path straight and reduces needle deflection.
Tools checklist: sailmaker/upholstery needle, bonded thread (Tex 70–120), awl, seam ripper, heavy-duty scissors, lighter, clips, small drop of polyurethane adhesive or fabric sealant for final finish.
Stitching techniques
Backstitch (hand): double your thread and secure with a surgeon’s knot. Make the first locking sequence with 6 small reverse stitches over 8–12 mm. Work a continuous backstitch with 3–4 mm forward advances and 3–4 mm backward overlaps so each stitch overlaps the previous hole; this produces a solid line with tensile continuity. For load-bearing seams sew two parallel rows 4–6 mm apart; stagger row start/end points by 6–10 mm to avoid a single weak spot. Tie off by passing the needle back through several stitches, form three tight half-hitches, then bury the knot inside the seam or under a folded edge; add one drop of clear fabric glue to the knot and trim excess.
Bar-tack (hand): set a width of 8–12 mm for the bar. Using the awl, make a line of closely spaced holes across the seam. Wrap with heavy thread and pass the needle back and forth through the holes 20–40 times while keeping high, even tension; aim for a dense, compact bar that resists lateral movement. Finish by sewing a small locking stitch into adjacent fabric, then melt a tiny dab of bonded adhesive over the tail and press flat.
Machine bar-tack or reinforcement: use a heavy-duty machine or industrial bar-tack function. Set stitch length very short (0.5–1.0 mm) and repeat the bar sequence 6–12 times across an 8–12 mm width; use bonded nylon thread and a walking foot. If the machine lacks a bar-tack function, perform a tight zigzag with minimal stitch length and repeat passes until the bar is dense.
Final checks: load-test the mend by applying static weight equal to expected carrying load plus 25% for safety, inspect for pulled stitches or stretched holes, and add a second reinforcement row if any distortion appears.
Swap or replace hardware: remove damaged buckle or tri-glide and fit the correct replacement
Measure the webbing width and thickness, then purchase a buckle or tri‑glide with an internal slot equal to the webbing nominal width (common sizes: 1/2″ = 12 mm, 3/4″ = 19 mm, 1″ = 25 mm, 1.25″ = 32 mm, 1.5″ = 38 mm). Match material to load: acetal plastic for daily carry, zinc/aluminum/stainless steel for high loads or wet environments; choose hardware with a rated working load at least 2× the expected carried weight.
- Tools & supplies: replacement buckle/tri‑glide, seam ripper, sharp scissors, lighter or soldering iron, heavy‑duty sewing machine or heavy needle (16/110–18/120), bonded nylon or polyester upholstery thread, pliers, awl, optional solid rivets and rivet setter.
- Quick identifiers: side‑release = two‑piece quick disconnect; ladderlock/tri‑glide = two‑bar adjuster; cam = spring‑loaded clamp. Note slot orientation and any center bar locations before removal.
- Remove damaged hardware: open sewn end by cutting stitches with a seam ripper along the stitch line only; preserve as much webbing tail as possible (minimum 25–30 mm free tail for re‑sewing). If hardware is looped, unthread the webbing while noting exact path through bars and cams – photograph for reference.
- Prepare webbing: trim frayed end square, melt edge quickly with a lighter or soldering iron to fuse fibers; press molten end flat with pliers to form a clean plug that will feed through hardware smoothly.
- Fit new part: feed webbing through the replacement in the same orientation (load side against the mating surface of the buckle or the rough side of the tri‑glide for friction). For adjustable sections, route so the free end pulls under the adjuster bar first to lock under tension.
- Secure by sewing: position folded end or overlap to create a 25–40 mm sewing zone. Recommended machine stitch patterns: box‑x (rectangle with diagonal X) sized roughly equal to the webbing width × 20–30 mm height; run at least 4 parallel passes plus the X for redundancy. Stitch length 3–4 mm. For bar‑tacks, use 8–12 dense passes across a 10–20 mm length.
- Hand‑sewing option: use heavy bonded thread and double the number of passes (6–8 passes per line) with a strong curved or sailmaker needle; use lockstitches and backstitch at starts/ends to avoid slipping.
- Rivet alternative: for non‑sewn fixes on thick webbing, fold and use solid rivets or Chicago screws sized to the webbing thickness; place rivet heads on non‑abrasive surfaces and space multiple rivets in a staggered pattern to spread load.
- Final inspection and test: visually confirm straight paths and that buckles engage fully; perform a static load test at least 1.5–2× the expected load for 30–60 seconds and cycle the adjuster 20–30 times to check for slippage or stitch movement.
- Orientation tip: on tri‑glides, the center bar usually creates the friction face – route webbing so the friction bite is between webbing and the center bar, not the outer frame.
- Material callouts: acetal plastic resists UV and chemicals but brittle in extreme cold; stainless or anodized aluminum is preferred for salty or high‑load use.
- Common mistakes: using undersized hardware, insufficient sewing length (less than 25 mm), or single‑line stitching – these reduce strength dramatically.
