Recommendation: choose a locking or screw-style clutch for metal brooches with a post diameter of 1.0–1.5 mm; use a 6–8 mm metal locking clutch or a 2.5 mm threaded post with a 4 mm nylon washer and hex nut for heavier enamel badges. Apply the clutch until it clicks or tighten the nut finger‑tight plus an extra 1/8 turn; avoid over‑torquing to prevent thread strip.
For fabric reinforcement, cut a rectangular patch of leather or 3 mm felt about 20×30 mm and place it behind the attachment point on the pack strap or main panel. Use polyester thread No. 30–40 and make 6–8 lockstitches around the post exit, spacing stitches ~3–4 mm apart. For a removable option, install a 6 mm brass rivet through the patch and fabric; use a rivet setter rated for 3–4 mm shaft length to avoid crushing thin materials.
Combine mechanical and adhesive retention for high‑value items: apply a thin bead of E6000 or 3M Scotch‑Weld 1357 (metal-to-fabric grade) to the post base, press the badge into the felt patch, then clamp lightly for 24–48 hours during cure. For straps with heavy abrasion, add a 6 mm square of 3M VHB tape between badge and patch before sewing to reduce rotational wear.
Placement and care: mount badges on straps or exterior panels with at least 25 mm clearance from zippers and hardware to prevent snagging. Inspect fasteners monthly: check clutch tension, look for fraying around stitch holes, and replace nylon washers after 6–12 months of heavy use. For travel through crowded areas, swap to a low‑profile rubber clutch or carry the badge inside a zipped pocket to avoid accidental loss.
Which fastening suits heavy-duty cotton, nylon or leather rucksacks?
Use screw-backs or locking clutches for heavy cotton rucksacks (post diameter 0.9–1.0 mm, post length 8–12 mm, backing plate 10–12 mm); choose rubber clutches or low-profile magnetic backs for thin nylon daypacks (post length 4–6 mm plus interior felt pad); for leather packs prefer screw-backs, Chicago screws or riveted posts with 10–14 mm posts and a leather washer to distribute load and avoid tearing.
Heavy-duty cotton
For thick woven cotton, pick locking clutches or screw-style fasteners that thread onto the post or lock in place. Use posts 8–12 mm long so the fastener sits flush without compressing the fabric. Add a metal washer (10–12 mm) on the interior face to spread load; for larger or heavier decorative pieces use two-post fittings spaced 15–25 mm apart to prevent rotation.
Nylon and leather
For thin nylon, rubber clutches (soft silicone) or magnets provide grip without piercing more than necessary; keep post length 4–6 mm and place a small adhesive felt disk behind the interior to stop abrasion. If the daypack is used outdoors with metal gear, choose stainless or brass fasteners to resist corrosion (example accessory pairing: best lawn chair with umbrella). For leather, pre-punch a clean hole with an awl, use a screw-back or Chicago screw with a leather washer, and select 10–14 mm posts depending on hide thickness; for thin or treated leather, add a grommet to prevent the hole from widening.
Reinforcing fabric to prevent holes and tears
Use a 3×3 in (7.5×7.5 cm) internal ripstop nylon patch bonded with contact cement, then machine-sew a 5 mm box with diagonal 4-point bar-tacks using bonded polyester thread (Tex 70 / ~30 wt) and a size 16/110 denim needle; stitch length 2.5–3 mm.
For high-abrasion zones add an external 4×4 cm leather or 1.2 mm PU patch backed with a thin plastic washer to spread load; glue with Barge or Shoe Goo, clamp 10–15 minutes, then topstitch 3–4 mm from the edge with waxed nylon thread or heavy-duty polyester on a walking-foot machine.
When attaching metal badge hardware, punch a hole sized to the grommet (use a 6 mm / 1/4″ grommet for posts ≈0.8–1.0 mm), place a 8–10 mm ID flat washer or leather washer on the interior, then set the grommet with a hand setter or bench press to distribute shear forces away from the fabric.
Lightweight fabrics benefit from medium-to-heavy fusible interfacing (120–250 g/m²) adhered to the wrong side before patching; test a small scrap because high heat can distort synthetics. For waterproof packs, seal stitch lines with heat-activated seam tape or Gear Aid Seam Grip applied sparingly along the stitch row.
Hand-sewing: use an embroidery stabilizer or a scrap backing under the stitching area, work with a curved needle or size 16 hand needle, backstitch critical points twice, and finish bar-tacks with 8–12 mm length zigzag stitches spaced 1–2 mm for extra density.
For quick field repairs carry 50 mm Tenacious Tape patches, a small grommet kit, a set of flat plastic washers, and a wearable needle-plus-waxed-thread kit; repair small abrasions before they turn into through-holes. For additional gear-care reading see best cordless lawn mower for small lawns.
Sew enamel badges with a backstitch and fine needle for stronger hold
Use an extra-fine sharp hand needle (size 9–10 hand/sharp) and bonded polyester thread doubled; stitch a tight backstitch with 1–2 mm stitch length around each metal post for maximum grip.
Materials: extra-fine sharp needle, bonded polyester or nylon thread (bonded polyester 30–50 wt or commercial sewing thread doubled), beeswax for waxing, small leather/felt washer 10–20 mm diameter (1–2 mm thick) or medium-weight fusible interfacing patch, clear fabric adhesive or Fray Check for final seal.
Procedure: remove any rubber clutch, push posts through the material, place the washer on the reverse side if space allows. Bring the needle up 1–2 mm from the post base, make a 1–2 mm forward stitch, then bring the needle back to the original hole (classic backstitch) so each stitch overlaps the previous one – this creates a continuous, non-elastic run of thread that resists pull-out.
Work in short rounds: make 8–12 backstitches around a single post before tying off; if the badge has two posts, alternate 2–3 stitches per post to keep tension even and avoid twisting. Keep the needle shaft almost perpendicular to the material so stitches sit flush against the metal base without piercing the metal itself.
Finishing: tie with a secure knot on the reverse (surgeon’s knot + three half-hitches), trim close, wax the tail and press a tiny dot of clear fabric adhesive over the knot. For thin or fragile material, use a 10–20 mm washer or a small leather patch behind the stitching to spread load and reduce tear-through; on heavier synthetics a fused interfacing disc will do.
Maintenance tip: check stitching after heavy use; re-tighten with the same small needle and two or three additional backstitch passes if any slack appears.
Use a silicone O‑ring plus a locking clutch rated for the post diameter to stop rotation and prevent loss of enamel badges on a pack
Slide a soft O‑ring (silicone or neoprene) onto the post before pushing the stud through material, then finish with a positive‑locking clutch or screw nut on the interior face. The elastic washer increases friction and shear resistance; the mechanical clutch prevents the post from backing out.
Recommended components and sizes
- Silicone/neoprene O‑rings: ID 1.0–1.5 mm for 0.8–1.2 mm posts; OD 4–6 mm; thickness 1.0–2.0 mm. Use food‑grade silicone for longevity.
- Nylon/PE flat washers (load distribution): ID ~1.2–1.6 mm; OD 8–12 mm; thickness 0.5–1.0 mm – prevents rotation on soft fabric and reduces point loading.
- Metal fender washers for heavy or strap areas: small ID drilled to match the post, OD 10–14 mm; use stainless steel to avoid corrosion.
- Locking clutches: rubber clutch (friction), military clutch (spring metal), push‑button locking clutch (release button), and screw‑on nuts for threaded posts. Match clutch hole to post diameter (typically 0.8–1.2 mm).
- Alternative spacer: short length of heat‑shrink tubing (cut and shrunk onto post) acts as a low‑profile washer when O‑rings aren’t available.
Installation steps
- Choose washer/clutch combination for the post diameter (measure the post with calipers if unsure).
- Slide the O‑ring or heat‑shrink spacer onto the post from the front face; position it ~1–2 mm from the base of the decorative face.
- Push the post through the material; if material bunches, add a flat nylon washer on the interior before the clutch to spread load.
- Attach the locking clutch or screw nut firmly. For push‑button clutches, press until the click engages; for screw nuts, finger‑tighten then give a quarter turn with pliers while protecting the post with tape.
- Test by tugging and rotating the face; add a second O‑ring or a fender washer if rotation persists.
Troubleshooting: persistent rotation – swap soft O‑ring for a thicker one or add a small nylon washer between the material and the clutch; loosening over time – apply a tiny amount of clear nail polish to the nut threads or use a locking nut variant; holes tearing under stress – relocate to a stronger seam or strap and use a metal fender washer under the clutch.
Temporary mounting with tape, magnetic plates and removable backings
Apply a 12–13 mm (1/2″) strip of low-residue painter’s tape to the rear of an enamel badge, press 20–30 seconds, then adhere to fabric – holds comfortably for a single day on smooth nylon and leather-like surfaces.
Tape options and method: use low-residue blue painter’s tape for short outings, removable double-sided tape (thin foam variety) for multi-hour use, or clear removable mounting dots for small lightweight metal badges. For best grip, clean both surfaces with 70% isopropyl alcohol, align the badge, press with steady pressure for 30 seconds, then weight for 5 minutes. Avoid textured or heavily stitched areas; moisture and sweat reduce dwell time.

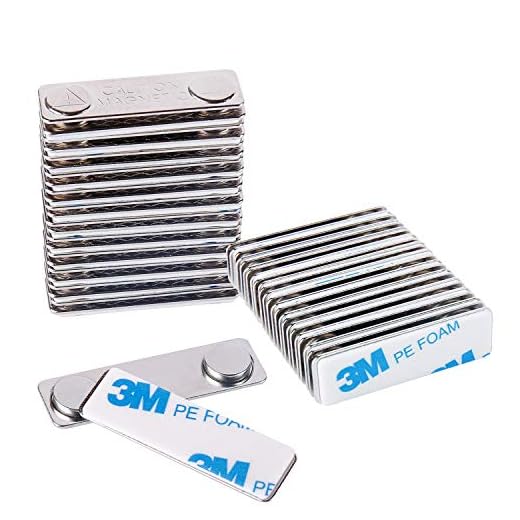

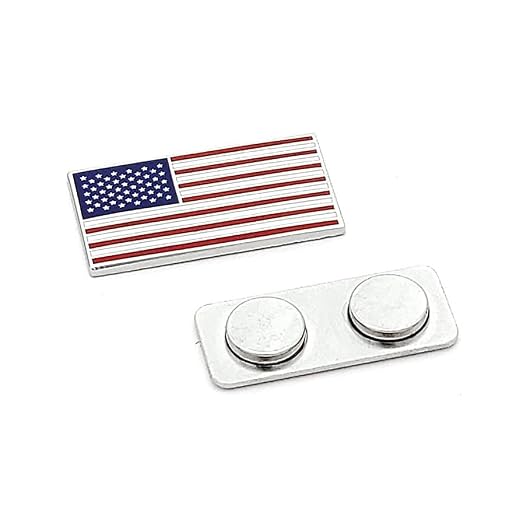

Magnetic approach: choose thin neodymium discs (4–6 mm diameter, 1–2 mm thick) graded N35–N52; typical pull force per small disc ranges from ~0.5–2 kg depending on size. Use a pair: one glued to the accessory back (use cyanoacrylate or two-part epoxy on metalbacks) and one placed inside the bag lining. For removable installation without glue, use adhesive-backed magnetic disks (peel-off paper liner). Keep magnets at least 20–30 mm away from cards with magnetic stripes and away from medical implants that respond to magnets.
Removable backing options: snap-on brooch backs (silicone or plastic clutch) are ideal for repeated on/off use; reusable adhesive putty (museum putty) works for very short durations and won’t pierce fabric; small Command-style removable adhesive tabs offer stronger hold but require careful removal. For adhesive-backed solutions, press for 30 seconds and wait 24 hours before heavy use if a permanent bond is intended; for temporary use, expect decreasing performance in heat or humidity.
| Method | Best duration | Typical hold | Surface fit | Removal notes |
|---|---|---|---|---|
| Low-residue painter’s tape | Single day (6–24 h) | Low–medium | Smooth nylon, leather-like | Peel slowly; little residue; replace tape each use |
| Removable double-sided tape / mounting dots | Several hours to days | Medium | Flat areas, thin fabrics | Warm air loosens adhesive; use isopropyl to remove residue |
| Neodymium magnetic plates | Multi-use, indefinite | Medium–high (depends on magnet) | Works through lining; no piercing | Lift inside magnet; avoid near cards/medical devices |
| Snap-on or silicone clutch backings | Repeated short uses | Low–medium | Works where a short travel or rotation is acceptable | Remove by hand; store clutch to avoid loss |
| Reusable adhesive putty | Minutes to hours | Low | Good for delicate surfaces | Press off; leaves minimal residue |
Removal techniques: warm adhesive briefly with a hair dryer (40–60°C) to soften, then peel at a low angle; for stubborn residue use isopropyl alcohol or a small amount of citrus solvent on a cloth. For magnetic systems separate magnets gradually to avoid sudden drops. Test any method on a hidden seam before full use to confirm no discoloration, adhesive transfer or material stretching occurs.
Inspect, tighten and repair loose enamel badges and damaged fabric
Inspect every attachment point every 2–3 weeks and repair any hole larger than 3 mm before reattaching an emblem.
Tools and consumables
- Digital calipers (0.01 mm resolution) or a mm ruler
- Needle-nose and flat-nose pliers; round-nose for bending posts
- Small bench vise or jeweler’s vice
- Pin vise and 1.5–2.5 mm drill bits
- Grommet kit (sizes: 3/16″ / 4.8 mm and 1/4″ / 6.4 mm) with setting tool
- Solid rivet kit (3.5–4 mm diameter) and handheld rivet setter
- Fusible interfacing, medium weight (60–90 gsm) and adhesive-backed ripstop nylon patches (25×25 mm and 50×50 mm)
- Fray-stopping liquid (e.g., Fray Check), fabric glue (water-based), leather contact cement (for hides)
- Two-part epoxy for metal post reattachment (5–10 minute or slow cure for strength)
- Replacement posts, screw-posts or Chicago screws (2.5–3 mm shaft diameters)
Inspection checklist and pass/fail limits
- Hole diameter: measure with calipers. If ≤3.0 mm proceed to reinforcement; if >3.0 mm treat as a damaged hole requiring grommet or rivet.
- Post straightness: acceptable lean ≤2°; if ≥5° replace or re-straighten in vise and re-check alignment under magnification.
- Corrosion or metal fatigue: any rust pitting or hairline crack – replace metal post or entire clasp.
- Fabric delamination: if backing fabric layers separate more than 5 mm from the hole edge, add interfacing or patch before reuse.
- Clutch/retainer elasticity: rubber clutches that stretch beyond 20% of original internal diameter should be replaced.
Repair procedures (choose based on hole size and substrate)
-
Small hole or fray (≤3 mm) on woven nylon or polyester bag):
- Trim loose fibers with sharp scissors.
- On the interior, fuse a 25×25 mm medium-weight interfacing patch with a pressing cloth. For polyester/nylon set iron to low/medium (≈120°C), press 8–12 seconds with firm pressure.
- Apply a drop of fabric glue or Fray Check to the hole edge; allow 12 hours cure before reattaching emblem.
-
Frayed or enlarged hole (>3 mm) on fabric:
- Use a 5–6 mm hole punch to create a neat round opening.
- Install a metal grommet sized to match the fastener shaft (4.8 mm grommet for 2.5–3.0 mm posts); set with manufacturer tool.
- If grommet not possible, install a short solid rivet (3.5–4 mm) with a reinforcing interior patch of ripstop nylon (50×50 mm) glued first, then set the rivet.
-
Leather or faux-leather tears:
- Punch a clean hole with a rotary punch matching the post diameter.
- Glue a small leather patch on the inside with contact cement; clamp 30 minutes.
- Use Chicago screws or screw-posts instead of push-type retainers when possible; choose post shaft 3–4 mm and tighten to hand-plus-1/4 turn.
-
Bent or broken metal posts:
- Straighten minor bends by gripping near the base with flat-nose pliers and gently bending back in small increments in a vise.
- For fractured posts, drill out the mounting residue with a 1.5–2.0 mm bit, clean bore, and epoxy a replacement post; support alignment with a jig and allow 24 hours cure for full strength.
- Prefer threaded posts or screw-post replacements when the original post is a weak staking design.
Cure and reassembly periods
- Two-part epoxy: full strength at 24 hours (5–10 minute epoxy reaches handling strength sooner but follow manufacturer cure times).
- Fabric glue: allow 12–24 hours depending on humidity; do not subject to load until fully set.
- Leather contact cement: clamp 30 minutes, full bond 24 hours.
Preventive maintenance checklist
- Keep a small repair kit in the bag: two replacement retainers, a 25×25 mm ripstop patch, a tube of fabric glue, and a micro screwdriver.
- Replace soft rubber retainers every 6–12 months if used frequently.
- After repair, test each attachment with a 1–2 kg pull for five seconds before regular use; any slippage indicates rework.
