Primary concern: compact carry-pack liquid extractors typically have small holding tanks (commonly 7–19 L/2–5 US gal) and light structural frames. A 15 L reservoir adds roughly 15 kg (33 lb) when full, so an empty unit of 8–10 kg (18–22 lb) becomes ~23–25 kg (50–55 lb) during operation. Expect cordless models to run about 20–40 minutes per charge and motor ratings in the range of 800–1,500 W; sound levels are often 70–80 dB. Those figures explain frequent interruptions for emptying, battery swaps and operator fatigue on multi-room or prolonged jobs.
Practical adjustments: pick designs with removable recovery tanks or external dump fittings, padded suspension and waist support, and quick-change filter elements. Use a longer hose (1.5–3 m / 5–10 ft) so the operator can leave the unit stationary and move only the wand; add a pre-filter basket to trap solids before they reach the main reservoir. For cordless setups, carry at least one spare battery or choose models with swappable battery packs rated to deliver continuous operation beyond 40 minutes.
When to choose alternatives: for flood mitigation, heavy sludge or continuous industrial extraction, opt for truck- or trailer-mounted pumps and larger-capacity recovery tanks (≥200 L / 50+ US gal). For tight stairways or long-duration cleaning, use wheeled canisters or cart-mounted extractors to avoid repeated lifting and to keep crew productivity steady. Regularly scheduled maintenance–emptying intervals, hose inspections and filter cleaning–reduces downtime and extends service life.
Tank Capacity Limits: Planning Continuous Cleaning without Mid-Job Emptying
Specify recovered-fluid capacity using a simple formula: required tank (L) = expected recovery rate (L/min) × desired continuous run time (min) × 1.25 safety factor. Aim for equipment that meets or exceeds that result; if the calculated capacity exceeds the wearable unit’s tank, choose a trolley unit or an external recovery drum.
Typical recovery-rate ranges to use for planning: light surface pickup 0.05–0.2 L/min, upholstery or light carpet extraction 0.3–0.8 L/min, heavy soil or saturated spills 1.0–3.5 L/min. Measure one representative area for 2–5 minutes to confirm the actual rate before committing to a continuous run length.
Examples: 1) For medium carpet extraction at 0.7 L/min and a desired 45-minute uninterrupted run: 0.7 × 45 × 1.25 ≈ 39 L → select a 40–50 L recovery system. 2) For routine light pickups at 0.15 L/min for 60 minutes: 0.15 × 60 × 1.25 ≈ 14 L → a 15–20 L tank suffices.
Hardware choices that reduce or eliminate mid-job emptying: dual-tank designs (active recovery + reserve), quick-release dump valves that allow emptying in 20–60 seconds, inline transfer pumps that feed an external drum, and float-level sensors with audible/visual alerts. Choose drain fittings compatible with on-site waste points (1/2″ or 3/4″ BSP/NPT common) to accelerate disposal.
Operational controls: segment large sites into zones sized to a single tank’s capacity, schedule regular short dump stops rather than one long interruption, rotate operators so one unit continues while another is dumped, and record recovery volumes per zone to refine future capacity estimates. Keep a spare portable recovery container (20–60 L) for unexpected heavy soiling.
Carry Weight and Operator Fatigue: Safe Load Limits and Strap Setup
Recommendation: Keep the total carried mass (equipment + liquid) at or below 20% of operator body weight for continuous shifts; allow up to 30% only for tasks under 10 minutes with mandatory rotation afterward.
Use simple arithmetic for load planning: 1 litre of liquid ≈ 1 kg (2.2 lb). Example: a 75 kg operator × 20% = 15 kg total. If the empty harness/unit weighs 5 kg, maximum fill = 10 L (10 kg). For a 90 kg operator at 20%: total = 18 kg, minus a 6 kg unit → fill ≤ 12 L.
Designate three operator-load bands for scheduling: light (≤15% body weight) – continuous single-operator use; moderate (15–20%) – rotate operators every 30–45 minutes; heavy (20–30%) – rotate every 10–20 minutes and limit consecutive shifts to one hour. Track cumulative exposure per shift and log swaps when loads exceed the moderate band.
Harness setup sequence: 1) fasten the hip belt snugly over the iliac crest so hips carry the majority of mass (goal: 60–80% transfer); 2) tighten shoulder straps until the unit sits against the upper back with 2–3 cm clearance above the clavicle; 3) set the sternum strap roughly 8–12 cm below the collarbone to stabilize without restricting breathing; 4) adjust load-lifter straps to a 30–45° angle to pull the top of the unit toward the torso and minimize backward torque; 5) re-check hip belt tension after shoulder adjustment and walk 30–60 seconds, then fine-tune.
Hardware specs to prefer: shoulder straps 50–75 mm wide with ≥10 mm closed-cell foam, padded hip belt 40–60 mm with firm stays, quick-release buckles, and an accessible sternum adjuster. Use anti-chafe sleeves where straps contact skin and choose corrosion-resistant fittings for wet environments.
Operational cues that require immediate action: persistent shoulder pain, numbness in hands, breathing restriction, or red pressure marks lasting >10 minutes after strap removal – reduce load, refit harness, or swap operator. Schedule short recovery breaks: 2–5 minutes every 30 minutes when working in moderate/heavy bands, and provide shade or cooling; for portable shade consider best umbrella for heat protection.

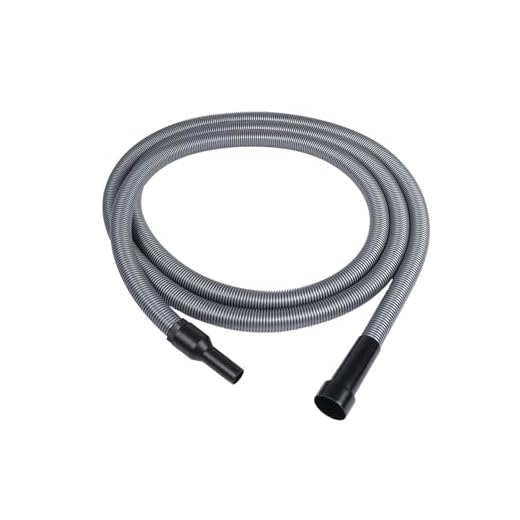

Hose Length and Reach Constraints: Reducing Re-mounts and Trip Hazards
Specify at least 25 ft (7.6 m) of unobstructed hose with 1.25–1.5 in (32–38 mm) inner diameter smooth-bore tubing; this configuration commonly halves the number of times an operator must re-mount the portable extractor compared with 12–15 ft setups.
- Recommended hose specs:
- Short runs (≤15 ft): 1.0–1.25 in (25–32 mm) ID smooth-bore for maximum maneuverability.
- Medium runs (25–50 ft): 1.25–1.5 in (32–38 mm) ID smooth-bore to limit airflow loss.
- Long runs (>50 ft): 1.5–2.0 in (38–50 mm) ID plus a booster fan or secondary unit to preserve pickup performance.
- Hose construction choices:
- Smooth-bore inner wall reduces friction loss by roughly 20–30% compared with corrugated designs; choose abrasion-resistant outer jacketing for high-traffic sites.
- Anti-kink spring guards at wand and cuff ends prevent sudden collapses that cause trips or loss of suction.
- Expected performance trade-offs:
- Rule of thumb: every extra 10–15 ft added to a 1.25 in hose can reduce airflow/pickup efficiency in the nozzle by approximately 10–20% unless diameter is increased or booster is used.
- Increasing diameter one size typically restores most lost performance but raises hose weight and bending stiffness–balance reach versus handling.
Operational practices to cut remount frequency and hazards:
- Position the unit centrally or on a mobile base with swivel casters so the hose can reach a 360° work area without crossing major walkways.
- Use 12–18 in (30–45 cm) straight and angled extension wands to access under furniture and high edges without changing unit placement.
- Keep a 10–15 ft quick-attach spare hose on the harness or cart for rapid extension rather than returning to the unit.
- Fit swivel couplers and quick-release cuffs to prevent torquing and kinking where the operator moves most.
Trip-hazard mitigation techniques:
- Route planning: map the work area to avoid doorways and high-traffic aisles; aim for a single long run rather than multiple cross runs.
- Physical protection: use low-profile cable ramps or flat hose covers at crossings and bright contrast tape on exposed lengths through public spaces.
- Securing intervals: anchor hoses every 6–8 ft with removable Velcro straps or grommeted clips to prevent lateral drift and loops that catch feet.
- Signage and sightlines: place cones or signage where hoses cross pedestrian paths and keep lighting uniform to eliminate shadowed loops.
Maintenance and inspection checklist (daily):
- Check inner bore for soft spots, crushing or debris that reduce flow.
- Inspect cuffs and clamps for airtight seals; replace torn cuffs immediately.
- Verify anti-kink springs and swivel joints move freely; lubricate or replace as needed.
- Confirm hose weight and balance remain within operator handling limits to avoid increased trip risk from sagging lengths.
For unrelated reference material, see are there carbs in red wine.
Clog-Prone Debris Types: Prevention and Quick Clearing Techniques
Install a removable stainless-steel intake basket with 3–5 mm perforations and use a hose with ≥40 mm inner diameter for general tasks; pre-screen solids ≥8 mm to prevent line occlusions.
Common cloggers and recommended inlet protection
Coarse gravel, pebbles, nails: use a welded-wire basket (mesh 6–10 mm) placed at the inlet; add a quick-release dumping port on the basket so captured stones can be emptied without opening the main tank. For sites with >10 kg/day of grit, fit a debris trap with a sediment sump sized 1–2 L to capture heavy particles before they reach the impeller.
Sand and fine grit: fit an inline cyclone separator sized for nominal flow of the unit (choose cyclone rated for ≥ the unit’s L/min or m³/h) and a washable 200–500 μm pre-filter. When sand load is expected, increase hose diameter to 50 mm to reduce flow velocity and abrasive wear.
Hair, textile fibers, rope and fishing line: use a 40–50 mm ID hose and an upstream flat-toothed comb screen (1–3 mm openings). For environments with long fibers, install a rotating inlet cutter or choose a screen with a detachable cradle to remove wrapped material without tools.
Leaves, twigs, organic debris: deploy a 6–10 L debris basket with a lid and a 5–8 mm mesh; for leafy loads use a coarse pre-sieve at the pickup head to prevent matting. Add a secondary foam baffle to slow intake and drop light organics into the basket rather than the main chamber.
Plastic film and wet packaging: use a clamp-style shout-off flap at the nozzle that opens only under sustained suction; pair with a 25–30 mm throat plate to shear and prevent long films from wrapping around impellers.
Rapid on-site clearing procedures
Immediate action for a blocked hose: switch the unit off and isolate power, pinch at the hose midpoint to hold debris, detach the hose at the quick coupler, inspect visually and push obstruction out of the intake end using a 6–8 mm plumber’s snake or a purpose-built push rod (max length 3 m). Avoid using sharp tools that can score hose walls.
Clearing fibrous wraps: cut a 50–100 mm longitudinal slit along the hose on the wrapped section only, remove material, then repair with a self-fusing silicone tape and a 100 mm external band clamp. Replace hose if cuts exceed 30% of circumference or if internal ribbing is damaged.
Flushing sand/clay blockages: if compatible with the unit, remove hose and flush from nozzle end with 2–4 bar water pressure until particles release into a bucket; allow full drying before refitting foam or paper filters. For clay that hardens, submit the hose to soaking in a 1:20 diluted biodegradable degreaser for 30–60 minutes before mechanical flushing.
Using reverse-blow: if the machine has a blow function, set blower pressure to no more than 6 bar and hold the hose 200–300 mm from the obstruction while sweeping; for portable units without blow mode, use a 6–8 bar air gun at the detached hose inlet while wearing eye protection.
Impeller inspection after a severe clog: check vanes for entanglement and replace any impeller with bent or missing vanes; measure clearance from impeller to housing (should match manufacturer spec within ±0.5 mm) to avoid imbalance-induced recurrence.
Maintenance cadence: inspect intake basket and pre-filters daily on heavy-debris jobs, weekly for light loads. Keep a replacement hose, 6 mm snake, and a 1 L bottle of biodegradable degreaser in the kit for on-the-spot clearing.
Battery Runtime and Charging Workflow: Managing Back-to-Back Jobs
Carry a minimum of two fully charged battery packs per operator; add a third when single-pack runtime is below 60 minutes.
Runtime benchmarks and calculations
Measure motor draw in watts under typical use. Example: a 36 V, 10 Ah pack = 360 Wh. A motor drawing 400 W will run ≈0.9 hours (≈54 minutes) before depletion. Use this formula: runtime (hours) = battery Wh ÷ average motor W. Expect real-world runtime 10–25% below the theoretical figure due to losses, accessory draw and terrain. For 18 V systems, halve the Wh accordingly; for dual-motor units add both motor draws plus accessory loads.
Sample ranges based on pack specification and load: 36 V/6 Ah (216 Wh) → 0.4–0.6 h at 300–500 W; 36 V/12 Ah (432 Wh) → 0.8–1.1 h at 350–500 W. Use a clamp meter on DC leads or an integrated battery fuel gauge to confirm onsite figures rather than relying on nominal specs.
Charging, swap protocol and lifecycle management
Use a multi-bay smart charger sized to charge a typical pack to ~80–90% within crew break length. Example: a 36 V/12 Ah pack on a 6 A charger reaches ~90% in ≈2 hours; a 12 A fast charger achieves ~90% in ≈1 hour. Equip vehicles or depots with 4-bay chargers when handling two operators per vehicle.
Adopt a rotation rule: keep one pack on the machine, one on the charger during breaks, and one stored as cold spare if shifts exceed two hours of continuous use. Swap packs using quick-disconnect mounts to minimize downtime (<30 seconds).
Battery care parameters: avoid charging below 0 °C or above 45 °C; store spares at 20–25 °C and ~40–60% state-of-charge for longest calendar life. Avoid regular deep discharges – set operational cutoff at 10–15% and perform recharge before 20% where possible. Expect lithium packs used daily to retain ~70–80% capacity after ~800 cycles; schedule replacement every 18–24 months under heavy use or sooner if capacity falls under 70% of nominal.
Operational paperwork: log serial number, charge start/stop times, cycle counts and any temperature excursions. Mark packs with next-service or replacement date. Label chargers with unit IDs and priority charging order to prevent accidental use of aging packs as primary spares.
Safety and infrastructure: always use manufacturer-approved chargers, provide a ventilated charging area away from fuel or solvents, secure chargers to prevent tipping, and store battery packs on non-conductive shelving. Install LED indicators visible from the vehicle cab or service bay so crews can confirm charge status before departing.
Maintenance Downtime: Daily Checks and Fast Part Replacements
Recommendation: Run a 4–6 minute pre-shift inspection and carry a fixed spare-kit so most on-site repairs take under 15 minutes.
Daily quick-check (3–6 minutes total): 1) Visual hose, cuff and coupling check (30 s). 2) Lid and clamp integrity and torque check (hand-tight + 1/8 turn, 45 s). 3) Drain valve operation and seal check (30 s). 4) Intake screen/pre-filter removal and tap-clean (30–60 s). 5) Motor current vs baseline (30 s with clamp meter). 6) Float/automatic shutoff movement and reset test (30 s). Record anomalies on each line-item.
Measured thresholds to flag service: motor current > baseline +20% under normal load; new suction unit that shows audible changes in motor tone; sudden pressure drop across intake screen that cannot be cleared by tapping; visible seal compression set or cracks. Any flag moves the unit to immediate swap or repair.
Rapid-replacement parts and target swap times: replaceable cartridge filter: 2–4 minutes; intake pre-filter: 60–90 seconds; gasket/O-ring: 1–3 minutes; hose/cuff and quick-release coupling: 1–3 minutes; float assembly: 3–7 minutes; motor carbon brushes: 10–20 minutes. Plan for a 3–5 minute total for common filter/float swaps and 15–20 minutes for brush servicing.
Minimum portable toolkit (keep on vehicle): 1) 1/4″ ratchet with 8–14 mm sockets, 2) Torx T10–T25 driver, 3) adjustable pliers, 4) hose clamp pliers and spare stainless clamps (4), 5) 10 g silicone grease tube, 6) digital multimeter, 7) nitrile gloves and shop towels, 8) compact LED work light. Tools selected so common tasks require no bench work.
Spare-parts kit (recommended counts): intake pre-filters ×5; main cartridge filter ×1–2; HEPA element ×1; O-ring/gasket kit ×1; float assembly ×1; motor brush set ×1; universal hose 2–3 m ×1; quick-release couplers ×2; clamp pack (6) ×1. Store in labeled, sealed bags with expiry/stock date.
Step-by-step fast-swap procedure (aim: ≤5 minutes): 1) Isolate power and vent unit (10 s). 2) Open lid/clamps and drain residual fluid if present (30–45 s). 3) Remove pre-filter, then cartridge (30–60 s). 4) Fit new cartridge, apply light silicone grease to lid O-ring, reseat and secure clamps (90 s). 5) Run a 60-second functional check: motor current, float operation, intake leak-check. Document result (30 s).
Maintenance intervals and logging: log daily check (time-stamped); replace pre-filter daily or after 8 hours of heavy use; cartridge filter every 250–400 operating hours or when differential exceeds baseline +X% (establish baseline during commissioning); HEPA element every 6–12 months depending on usage; motor brushes every 200–400 hours. Keep a simple service log with date, hours, fault code, action taken, and initials.
Operator readiness: provide a 15–20 minute hands-on briefing for swaps and a one-page laminated procedure card mounted on the machine. Assign one trained responder per shift who carries the spare-kit; this reduces team-wide delays and keeps mean time-to-repair low.
FAQ:
What is a major limitation of backpack water vacuums for extended cleaning shifts?
The main constraint is the physical load and limited recovery volume. Carrying a full tank plus hoses and accessories places steady strain on the user, so performance drops as fatigue sets in. Many models have modest tank sizes, which forces frequent stops to empty and slows job progress. Cordless versions add a second constraint: battery runtime, which may require spare batteries or recharges for long shifts.
Can a backpack water vacuum pick up solid debris, or are there restrictions on the types of material it can handle?
Most backpack units are optimized for liquid recovery and fine particles rather than bulky solids. Large stones, wood chips, or heavy clumps can clog the hose, damage internal components, or reduce suction dramatically. Some models include a debris basket or are built as wet-dry hybrids that can accept small amounts of grit, but even those perform best when large items are removed first by hand or with a broom. Filters and float valves also need regular inspection and cleaning after any load that contains sediment, grease, or sticky substances. Finally, these vacuums are not suitable for flammable liquids or strong acids without specific manufacturer approval and compatible materials.
