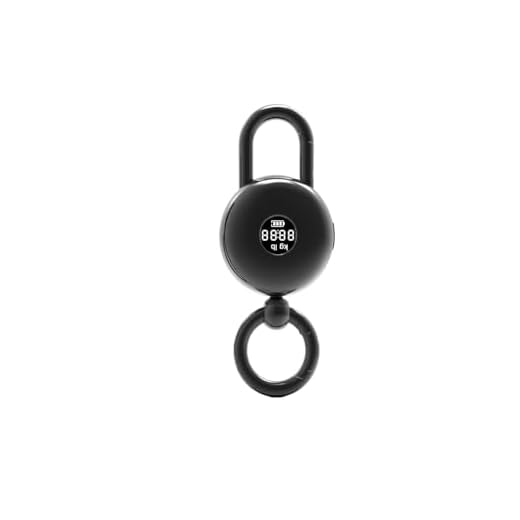

Typical construction: most portable bag meters use a small strain-gauge load cell or bending-beam sensor that converts applied tension into a voltage change; that analog signal passes through an amplifier and an A/D converter, then a microcontroller applies a calibration factor and displays mass in kg or lb. Common specifications: capacity 30–50 kg (66–110 lb), resolution 0.01–0.1 kg, absolute accuracy often in the range ±0.02–±0.2 kg depending on build quality.
Calibration and verification: zero the device with no load, then verify using known references – for example, one 1 L bottle filled with water ≈ 1 kg, or a gym plate labeled 5 kg. If the meter supports user calibration, follow its calibration routine with a stable reference mass; otherwise note the device offset and apply a correction to readings. Replace coin-cell or AAA batteries when you see drift greater than the device’s stated accuracy.
Field procedure: attach the handle centrally to the hook, hold the meter vertical, keep the suspended bag still and wait for the display to stabilize (typically 2–5 seconds). Take three consecutive readings and use the mean if values vary. Avoid sudden jerks, overloading beyond labeled capacity and hooking onto straps that slip – damaged hooks reduce repeatability.
Maintenance and environmental notes: store the instrument in a dry place, avoid exposure to temperatures below −10 °C or above +50 °C for long periods (thermal drift affects zero), and inspect the hook and fastener for wear. For consistent results across trips, record the device offset against a certified reference once per month and after any drop or shock.
Strain-gauge sensors: converting load into electrical signals
Mount a bonded strain gauge to the elastic member, excite a Wheatstone bridge with a stable voltage, amplify the resulting millivolt-level differential signal with a low-noise instrumentation amplifier, and calibrate zero and span against known masses for accurate voltage output proportional to applied load.
A strain gauge is a thin metal foil or semiconductor pattern whose resistance R changes with mechanical strain ε. The fractional change follows ΔR/R = GF · ε, where GF (gauge factor) is ~2.0 for metallic foils and can reach 50–200 for semiconductor types. Common gauge resistances are 120 Ω and 350 Ω; lower resistance reduces thermal noise but needs heavier excitation current.
Place gauges in a Wheatstone bridge to convert resistance change into voltage. For a single active element in a quarter-bridge, approximate bridge output Vout ≈ (ΔR/R) × (Vexc/4). A full-bridge with four active arms increases sensitivity by ~4× and provides better temperature compensation. Express sensitivity as mV/V: a 2 mV/V transducer at 5 V excitation yields 10 mV full-scale.
Pick excitation voltage considering power and noise: 3–12 V is typical; higher Vexc raises signal amplitude linearly but increases self-heating. Use a low-noise, low-drift reference or a ratiometric ADC that references the same excitation to cancel common-mode shifts. Minimize thermal EMFs by using uniform connector metals and keeping junctions isothermal.
Amplification and filtering: compute amplifier gain = Vadc_fullscale / Vout_fullscale (example: Vout_fs = 10 mV, desired ADC input ≈ 2 V → gain ≈ 200). Choose an instrumentation amplifier with input noise density 80–100 dB. Add a low-pass anti-alias filter (single- or second-order) set at ~10–20% of the ADC sampling rate to remove mains and mechanical noise.
ADC and resolution planning: with 5 V excitation and 2 mV/V sensitivity (10 mV FS), a 16-bit ADC without gain gives poor utilization; using gain to place signal near full-scale yields better effective resolution. Example: 10 mV FS amplified to 2 V and digitized by a 24-bit delta-sigma ADC with 2 V full-scale achieves sub-microvolt input resolution after averaging, allowing detection of small force increments.
Temperature drift and compensation: reduce zero and span drift by employing a full-bridge or a dummy gauge in the inactive arm matched for thermal coefficient. Implement software compensation using a local temperature sensor and calibration table if ambient varies across the operating range.
Wiring and layout: route bridge leads as a shielded twisted pair, place the amplifier as close to the gauge as possible, use star grounding, and avoid routing sensitive traces near switching supplies or motors. Perform a two-point calibration (zero and known load) and verify linearity across expected range; store calibration coefficients and recheck after any mechanical change.
Calibrating a handheld baggage weighing instrument for accurate measurements
Perform a zero adjustment and a two-point calibration with certified reference masses (example: 1.000 kg and 5.000 kg) after battery replacement, any drop, or at least every six months.
Required items: two NIST-traceable calibration masses covering the instrument’s typical range (suggest 1 kg and 5 kg for devices rated to 10–50 kg), a rigid hanging point or stable hook, a short non-stretch strap or hook adapter, and a log sheet to record results.
Warm-up: power the instrument and let it stabilize for 2–5 minutes at the ambient temperature where it will be used. Calibration performed at a temperature more than ±5 °C from operating conditions may produce measurable error.
Zero adjustment: with nothing hanging, press the zero/tare function. If the display does not settle within ±0.02 kg (for 0–5 kg range devices) or within the instrument’s resolution, check batteries and mechanical assembly for binding or deformation before proceeding.
Two-point procedure: enter calibration mode per the manufacturer’s manual. Hang the lower reference mass (M1) and record the raw reading R1; then hang the higher reference mass (M2) and record R2. Compute gain and offset using:
gain = (M2 − M1) / (R2 − R1)
offset = M1 − gain × R1
Apply those parameters (many instruments use separate offset and span settings). Example: if M1=1.000 kg, R1=0.980 kg, M2=5.000 kg, R2=4.880 kg, then gain=(5.000−1.000)/(4.880−0.980)=1.024; offset=1.000−1.024×0.980=−0.003 kg.
Linearity check: verify at least one intermediate mass (for example 2 kg or 3 kg). The corrected reading should fall within ±0.05 kg or within 1% of the reference mass, whichever is larger for consumer handhelds; for stricter needs aim for ±0.02 kg.
Hysteresis test: load the highest test mass, then remove masses and reload the same mass. Difference between loading and reloading readings reveals hysteresis; a repeatability error greater than 0.05 kg indicates mechanical play, strap creep, or sensor damage.
Battery and mechanical checks: replace batteries if the device shows drift after calibration or if the low-battery indicator is present. Inspect hooks, straps and attachment points for bends, wear, or friction; replace any soft or stretched straps that allow sag.
Environmental notes: avoid calibration near large metal structures, vibrating equipment or drafts. Gravity variations with geographic location can produce up to ~0.5% change at extreme latitudes; for travel-critical precision, perform a local verification with a known mass.
Record keeping: log date, serial number, ambient temperature, masses used, raw readings, computed gain/offset and final verification readings. Recalibrate after any impact, battery swap, prolonged storage, or if verification masses shift beyond tolerance.
Troubleshooting summary: constant offset after zeroing → adjust offset or inspect hook; nonlinearity between points → suspect sensor or electronics fault; large hysteresis → check mechanical components; unstable readings → replace batteries and repeat warm-up.
Tare, unit selection and hold: effects on displayed mass
Recommendation: always tare the container or hook before adding the item, choose the unit that provides the smallest display increment for the expected mass, and engage hold when the reading is unstable or the item is suspended.
Tare behavior: pressing TARE stores an offset equal to the current raw reading; displayed_mass = (raw_reading – tare_offset) × calibration_factor. If you tare a 300 g pouch and then add a 2.345 kg item, the instrument will show 2.045 kg. Taring with no load sets tare_offset = raw_reading and creates a zero baseline; taring while loaded creates a positive offset and can produce negative displayed mass if the final load is lighter than the tare.
Capacity and remaining range: tare reduces usable capacity by the offset amount. Example: a device with 50 kg capacity and a 5 kg container tare leaves 45 kg available before overload. Exceeding remaining range often yields an overload indicator or clipping of the ADC, producing inaccurate or stuck readings.
Unit selection effects: unit conversion and displayed resolution are separate. A sensor with 1 g internal resolution will present 1 g steps in grams, but converting to ounces produces 0.035274 oz steps, typically rounded to the device’s display digit (e.g., 0.01 oz). Example: a measured 2045 g (after tare) equals 72.132 oz; with 0.01 oz display the shown value becomes 72.13 oz. Switching units mid-measure may reveal quantization noise – for small masses choose grams; for higher masses choose kilograms or pounds to avoid long digit strings.
Rounding and calibration implications: firmware often converts raw ADC counts to the chosen unit using a fixed calibration factor. Frequent unit switching does not change the ADC resolution but changes printed digits after conversion; expect ±0.5 of the least significant digit in displayed unit. For best repeatability, set units before taring and measuring.
Hold function mechanics: HOLD freezes the last stable displayed value. Stability detection usually requires variance below a preset threshold (example: <0.5 g over 1–3 seconds). Hold is useful for suspended or moving items where human reading delay would otherwise capture a fluctuating number. After hold, further loading does not update display until HOLD is cleared; many instruments still accept tare or unit-change commands while held – test your specific model.
Operational checklist for accurate readings: 1) zero the device with TARE using the actual container or hook; 2) choose the unit that yields the smallest displayed increment without excessive digits; 3) wait for stability or press HOLD if the load is suspended; 4) ensure remaining capacity > expected load; 5) if readings jump after taring, remove and re-tare on a stable surface. For hanging measurements use a sturdy hook – see best c hook reverse umbrella – and consider proper travel gear like best luggage for business woman for consistent packing tests.
Diagnosing and Fixing Zero Drift and Unstable Readings
Replace batteries and warm the instrument for 15 minutes; set the zero with no load and log readings every 30 seconds for 15 minutes to quantify drift (acceptable for consumer portable balances: <1 display division per 5 minutes; target for accurate units: <0.1% full-scale per hour).
Quick diagnostic checklist
- Mechanical stability: suspend or place the unit on a rigid, vibration-free hanger; remove any side loads or twisting on the hook/attachment.
- Zero test: with no load, press zero/tare, then note change at 1, 5 and 15 minutes. If zero shifts more than 2 divisions in 5 minutes, proceed to electrical checks.
- Repeatability test: apply a calibrated mass (1 kg or 5 kg depending on range) five times; difference between reads should be within one division. Larger spread indicates mechanical play or sensor fatigue.
- Hysteresis check: apply full-span load (or max recommended test mass), hold 30 s, remove; zero should return within one division of original zero. Larger hysteresis points to plastic deformation or preloading of the sensing element.
Electrical and sensor troubleshooting
- Supply stability: measure supply voltage with a multimeter while displaying readings. If under-load droop >0.1 V or supply is below manufacturer spec, replace batteries or service the battery pack.
- Bridge output verification: for strain-gauge bridges expect a few mV/V full-scale. Use formula: Vout ≈ sensitivity(mV/V) × Vexc × (applied / FS). Example: 2 mV/V × 3 V × (5 kg / 50 kg) = 0.6 mV. If measured zero offset exceeds ±2 mV or noisy, suspect bridge damage or bad excitation/regulator.
- ADC and amplification: if readings flicker by several divisions, check amplifier rails and reference stability. Add or increase digital filtering (moving average 10–30 samples at 10 Hz) or lower ADC sample rate to 5–20 Hz to remove mains/air noise. Implement a low-pass RC equivalent cutoff ~1 Hz for pronounced jitter.
- Connector and wiring: inspect solder joints, flex wires and the hook connection. Clean PCB contacts with 70% isopropyl, reseat ribbon cables, and tighten terminal screws to specified torque; intermittent contact produces unstable values.
- Shunt calibration: if unit supports a shunt, apply the shunt resistor to simulate a known load and verify span; mismatch means amplifier or ADC scale factor needs adjustment.
Practical mechanical fixes: straighten or replace bent shackles/hook, remove paint or corrosion under the strain gauge mount, ensure the sensing beam is free of debris and that attachment screws are torqued evenly. For heavy surface contamination consider controlled washing methods (avoid soaking electronics); for high-pressure cleaning equipment options see best pressure washers for tennis courts.
- Temperature effects: measure drift while changing ambient temperature by a few °C. If drift correlates, add a 10–30 minute warm-up and store calibration coefficients for different temperature bands or replace a sensor with lower tempco.
- Firmware adjustments: enable software averaging or implement a median filter to remove spikes; limit display update rate to reduce perceived instability (1–2 updates/second gives stable human-readable output).
- Service actions if problems persist: replace the load cell/strain gauge assembly, check excitation regulator (replace small 3.3 V/5 V regulator if noisy), or reflow cold solder joints on the amplifier/ADC board.
Verification after fixes: perform zero, span and repeated-read tests with calibrated masses, log results for 30 minutes, and confirm drift and repeatability meet the target spec (repeatability ≤ one division; drift ≤ 0.1% FS/hour for precision units).
Battery type, charge level and display settings: effects on measurement accuracy
Use fresh, matched cells with low internal resistance and switch off display backlight during measurements to reduce voltage sag and random noise.
Chemistry and nominal voltages: alkaline cells ≈1.5 V per cell, NiMH rechargeables ≈1.2 V per cell (low-self-discharge types recommended), coin lithium (CR2032) ≈3.0 V, and single-cell Li‑ion ≈3.6–3.7 V nominal (4.2 V full). Devices are designed for a target supply range; substituting a different chemistry or mixing new/old cells shifts the operating voltage and can change zero offset or usable measurement span.
Internal resistance matters more than nominal voltage. A cell whose terminal voltage drops >0.1–0.2 V under the device’s normal draw indicates high internal resistance and will cause transient reading errors when the instrument samples. Quick check: measure open-circuit voltage, then measure while the instrument is on and displaying; replace if drop exceeds ~0.15 V per cell in small-cell designs.
Charge state effects: as voltage falls toward the device’s regulator/dropout limit, ADC reference rails and amplifier bias points shift, producing increasing noise, drifting zero and nonlinearity at the upper end of the measurement range. Practical rule: if the battery indicator shows a low state, or measured voltage is near the minimum specified in the manual, swap batteries before trusting results.
Display and UI settings influence both accuracy and battery life. LED backlights and high display brightness often add tens to hundreds of milliamps (typical handheld designs: ~10–100 mA extra); this extra load increases supply sag and short-term instability. Reduce brightness, disable backlight, and increase display update interval (if adjustable) to minimize current transients during sampling.
Sampling/firmware filters: increasing sample count or lengthening digital averaging reduces random jitter roughly by 1/√N (five-sample moving average cuts RMS noise by ≈2.2×). Increasing averaging improves repeatability but slows response; choose 5–10 samples for stable readings without excessive delay. Avoid very high refresh rates during capture because they correlate with higher instantaneous current draw and more noise.
Temperature interactions: cold cells exhibit higher internal resistance and lower open-circuit voltage, producing systematic under-reporting and slower recovery after load steps. Expect measurable degradation below ≈0–5 °C for alkaline and CR types; keep the device and batteries at room temperature for best repeatability.
Practical verification steps: 1) With fresh batteries, record the device reading on a known reference mass and note battery voltage. 2) Repeat the same measurement with batteries at suspected low charge. 3) If readings differ by more than one displayed digit or specified accuracy, replace cells and recalibrate. Also monitor battery voltage under operating load–a drop >0.15 V per cell indicates replacement.
Best practices: avoid mixing old and new cells or different chemistries, replace both cells in multi-cell compartments at once, use low-self-discharge NiMH for rechargeable use, disable nonessential display features during captures, and run a quick known-mass test after any battery change before relying on measurements.
