Match the stamped code found inside the shell to a replacement blank part number; most makers used a three-digit numeric code or short alphanumeric stamp adjacent to the lock that directly corresponds to cut pattern listings.
Inspect the lock pocket carefully: lift the interior lining near the lid edge, remove the small trim screw, and check the hinge flange and lock face for stamps. Photograph markings at close range and note exact characters (examples: 112, A23, No.45). Record shank diameter and shank length with calipers; typical shank diameters seen on mid-century hardside cases: 1.8 mm, 2.0 mm, 2.5 mm. Count visible wafer slots at the cylinder opening; most cylinders use between 3 and 6 wafers.
Provide the photographed code plus measurements when contacting specialty spare-part sellers or an independent locksmith – many vendors list blanks by code and will ship reproduction blanks priced US$3–15. Cutting or impressioning services using the code typically cost US$20–60. If no legible code exists, a locksmith can remove the cylinder to match it against universal blank sets or create a cut by impressioning from the lock itself.
Avoid drilling the cylinder while the shell remains attached, since that often damages the case body. For preservation, remove and label the original lock assembly, keep photographic documentation of the stamp location, and consider ordering a replacement cylinder with an original-style faceplate; expect parts plus labor totals in the US$30–150 range depending on rarity and shipping. If retaining originality is the goal, seek NOS assemblies sold as complete lock units rather than substituted modern hardware.
Identify Lock Blade Blanks on Classic Hard‑shell Cases
Match the stamped lock code on the chassis to a warded‑blade reference; common codes observed on mid‑20th century hard‑shell cases include 105, 203, 280, 312 and 527.
Inspection points and measurements
Locate the stamp on the lock face, inside the rim beneath the trim, or on the lock chassis after removing two small Phillips screws. If no marking appears, measure the keyway: blade width (typical warded blanks 6.5–9.5 mm), blade thickness (0.7–1.2 mm), and blade length (20–32 mm). Identify profile shape: flat warded blade, tubular (circular) with diameters usually 6 or 7 mm, or small wafer/lever types. Photograph the open lock from three angles and note screw spacing and latch projection in millimetres; these dimensions help match replacement parts.
Decoding absent codes and sourcing replacements
If the code is missing, produce an impression by inserting soft metal or use a locksmith’s decoder kit to read warding patterns. Supply measurements and photos when ordering blanks or assemblies from specialist sellers and auction sites. Consider complete lock replacements when blade duplication proves unreliable; order by mounting hole center‑to‑center and latch depth. For compact protective additions to a restored case, stow a lightweight umbrella such as best wind resistant folding umbrella inside the main compartment.
Locate and read stamped lock numbers, letters, or symbols on the case latch
Inspect with magnification and angled LED light: use a 10–20x loupe or macro camera and a 3,000–5,000 lux LED held at ~30–60° to reveal shallow impressions. Scan these zones: latch face, underside of the clasp, hinge plate, inside rim of the lid, back of the strike plate and the metal mounting plate near rivets. Stamps typically measure 1–4 mm high and appear as 1–4 digit numbers, single letters (A–Z), short alphanumeric combos or simple punched symbols (dots, triangles, slashes).
Reveal faint marks without abrasion: clean grease with a soft toothbrush and mild detergent; remove residue with 70% isopropyl on a cotton swab. For contrast, rub a soft graphite pencil or white chalk across the stamping and gently wipe the surface–pigment will remain in depressions. Alternative non‑destructive trick: photograph at 45° and convert to high‑contrast grayscale in image editor to make shallow characters readable. Avoid wire brushes, metal scrapers and harsh solvents that remove plating or obliterate stamps.
Record precise details: photograph both the entire latch and cropped macro views, note orientation (e.g., characters read left→right or rotated 90°), measure character height in millimetres and distance from nearest screw or rivet. If marks are symbols only (multiple dots, triangle), save clear closeups and consult maker code charts or locksmith databases that index symbol-to-blank matches. Bring documented images to a specialist when seeking replacement blanks or parts.
Field tips and parts handling: store small screws, springs and documentation together in a labeled pouch or best tote bag for travel in europe while working. When posting images to forums or emailing a locksmith, include scale (ruler or coin) and lighting angle to speed identification.
Photograph and measure the keyway profile to match factory key blanks
Place a metric ruler flush with the lock face and capture a perpendicular macro image at 90°: use a 50–100mm macro lens or smartphone macro attachment, RAW format, ISO 100–200, aperture f8–f11, and diffuse LED lighting from both sides to produce clear ward shadows and edge definition.
Record these photographic details on each image: scale position (mm), camera-to-subject distance, focal length, magnification (1:1 if possible), and orientation (mouth up). Include a close-up of the mouth and shoulder area, a full-face shot with ruler, and a second shot with a thin metal probe or 0.1mm feeler gauge inserted into the centre of the keyway to show depth reference.
Measure with a digital caliper (0.01 mm resolution) and a depth micrometer. Required dimensions: mouth width (A), throat depth from mouth to first ward (B), distance from mouth to each internal ward or stop (C1, C2…), internal ward heights relative to throat plane (D1, D2…), blade thickness at shoulder and mid-blade (E1, E2), shoulder-to-tip length (F). Record each value in millimetres to two decimal places.
Typical measurement ranges for common suitcase-style locks (for reference only): mouth width 4.5–8.0 mm, throat depth 1.8–4.0 mm, blade thickness 1.2–2.0 mm, shoulder-to-tip 8–28 mm. Acceptable matching tolerances when selecting a factory blank: blade thickness ±0.15 mm, shoulder position ±0.50 mm, ward spacing ±0.25 mm.
Negative impression and cross-section casting

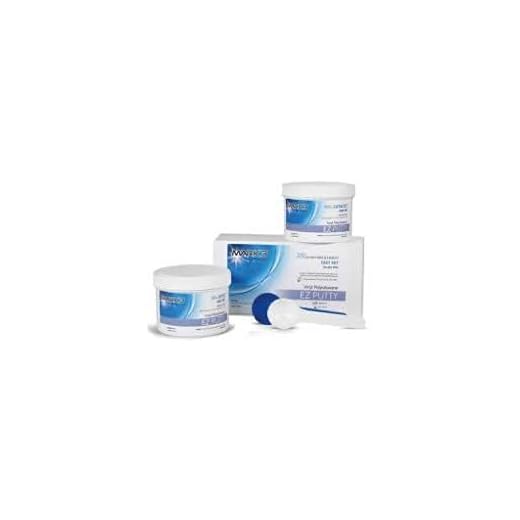

Use a fast-setting dental silicone putty (vinyl polysiloxane) to take a negative impression of the internal keyway. Inject putty into the mouth and allow full set. Cast the negative with low-viscosity two-part epoxy or polyurethane resin; after curing, slice the cast longitudinally to expose an accurate cross-section of the internal profile. Scan or photograph the slice next to a metric scale to produce an exact silhouette for overlay work.
Profile comparison and blank selection
Convert photographs to high-contrast silhouettes (grayscale threshold), import into vector software, and overlay manufacturer blank cross-section charts (Silca, Ilco, JMA datasets). Match on three parameters: outer silhouette shape, blade thickness at shoulder, and shoulder registration point. Prioritize blanks whose silhouette and dimensions fall within the tolerances listed above. For final verification, insert an uncut blank into the lock gently to confirm correct seating and shoulder engagement before any cutting or filing.
Store all files: RAW image, processed silhouette, measurement table, and casting photos labeled with date and camera settings. This documentation enables precise blank ordering and avoids trial-and-error purchases.
Create foil or pencil impression to reveal cut depths before cutting
Press a thin sheet of aluminium foil (3–4 layers) or a graphite-coated blade into the lock to produce a transfer that maps contact points and relative cut depths; inspect the foil graphite pattern and mark high/low positions before any permanent milling.
Materials
Aluminium foil (kitchen grade), soft graphite pencil (2B–4B) or dark ballpoint, a spare metal blank or thin flat blade, small file or deburring tool, magnifying loupe (10x) or bright LED light, fine-tipped marker.
Step-by-step procedure
1) Fold foil into a 3–4 layer strip about 10–15 mm wider than the blade; smooth to remove wrinkles. 2) Rub the blade face evenly with the pencil graphite until a continuous dark coating appears; alternatively wrap the coated foil around the blade so the coated side faces out. 3) Insert the coated blade fully into the lock keyway until the shoulder seats; rotate the blade 90° to 180° and withdraw in a straight line – avoid scraping the edge on the housing. 4) Lay the withdrawn foil flat under a bright light and use a loupe to locate the darkest contact spots (deepest cut contact will show least transfer where blade bottomed out; shallow cuts show continuous graphite transfer). 5) Transfer the observed pattern onto the blank: mark each position with a fine-tipped marker and note relative height as Deep / Medium / Shallow. 6) Test-fit with incremental milling or filing: remove metal in 0.5–1.0 mm increments at the marked positions and repeat the impression until the transfer indicates even seating of all contact points.
| Observed foil/graphite mark | Interpretation (relative) | Action on blank | Practical tip |
|---|---|---|---|
| No graphite transfer at a position | Very deep recess; blade bottomed out | Leave material; do not deepen further | Mark as “0” or deepest; avoid cutting deeper than surrounding cuts |
| Sparse, faint transfer | Deep cut but not full depth | Remove minimal metal (0.3–0.8 mm), re-test | File small amounts and repeat impressions to avoid overshoot |
| Continuous dark band | Shallow cut; strong contact across face | Remove more material (0.8–1.5 mm), re-test | Use cautious cutter settings; confirm with second impression |
| Uneven or off-center marks | Blade misalignment or shoulder seating issue | Check shoulder fit and keyway alignment before cutting | Shim blank or adjust handle seating, then repeat impression |
Repeat impressions after each small adjustment until marks show uniform, expected contact across all biting positions; preserve each foil sample as a comparison reference during final milling.
Search model and stamp-code blank databases
Use the exact stamped lock code plus the case model number as the primary search keyphrase; include alternate spacing, hyphens and letter-number permutations.
Recommended database targets
- Manufacturer blank catalogs and cross-reference lists (Ilco, JMA, Silca) – search PDF catalogs and cross-reference tables.
- Locksmith reference sites and forums – post images and stamped code text when requesting help.
- Key-blank retailers and wholesale catalogs – product pages often show blank part numbers and keyway photos.
- Auction and marketplace listings – sellers commonly list blank type or show original key photos for specific case models.
- Patent and parts-document repositories – older lock patents and parts sheets sometimes list factory blank IDs or stamping conventions.
Practical search strings and techniques
- Exact-stamp searches: “H-3” OR “H 3” OR “H3” in quotes plus the case model (e.g., “Model 113”) to filter results.
- Wildcard and site filters: site:ebay.com “Model 113” “H-3” OR filetype:pdf “lock stamp” “H-3” to find catalogs and listings.
- Cross-reference lookup: search vendor catalog number + “cross reference” (example: Ilco + “H3” + “cross reference”).
- Image reverse-search: upload photo of the stamped latch to image search to locate identical listings that name the blank type.
- Patent lookup: search patent databases for the latch design or filing date printed on the lock housing; patents often include parts diagrams and part codes.
When contacting sellers or forum members, provide the stamped code text, clear photo of the stamp, model designation, and a close-up of the lock housing. Request suggested blank part numbers and any known cutter codes used by locksmiths.
Choose the correct blank and have a locksmith cut or adapt a replacement key
Select a key blank that matches the keyway profile, blade thickness, shoulder-to-first-cut distance and material; present that blank together with a clear photo of the lock face, the stamped latch code and a pencil or foil impression to a qualified locksmith so a precise cut or adaptation can be made.
Measurements and data to provide
Record and deliver: keyway profile shape or letter, blade width across flats in mm (common range 1.2–3.5 mm), blade thickness in mm (0.8–2.0 mm), shoulder-to-first-cut distance in mm (typically 6–15 mm), total number of cuts, any visible depth code markings and the exact stamped code on the latch. Produce a hard impression on soft lead pencil or aluminum foil; a clear impression often replaces trial-and-error blank matching.
Options if a direct blank is unavailable
Request these services: blank modification by filing or milling, grafting a section from a donor blank, impressioning directly at the vise, rekeying or cylinder replacement, or cutting a custom blank from stock brass. Expect a bench fee that commonly ranges USD 15–50 plus additional time-based charges for custom work. Bring the latch or whole case when possible and any provenance notes; auxiliary links such as how to clean cat poop off carpet may be attached to job paperwork if relevant to restoration records.
FAQ:
How can I determine which key matches my vintage Samsonite luggage?
Start by inspecting the exterior lock and the immediate area inside the case for any stamped numbers or tiny metal plates that list a key code. Many older cases have the code on the lock face or on the metal trim just behind it; sometimes it is hidden under the interior lining or beneath a trim strip. Take clear photographs of the keyhole shape and the lock body: flat blade keys, tubular (barrel) keys and wafer-style blanks look different and can be matched visually against parts catalogues or listings on auction sites. If a code or obvious identifier is present, search online using the code plus “Samsonite” to find matching blanks or replacement keys. When the code is missing, a locksmith experienced with vintage luggage can often read the lock or produce a working key without harming the case. Avoid forcing random keys into the lock or using excessive force, since that can bend tumblers or damage the case finish.
If the key number is gone and I want to open or replace the lock without harming my Samsonite, what are safe options?
If the stamped code is gone, the least invasive option is to have a locksmith examine the lock in place; many can decode the mechanism or make a key by impressioning, which leaves the suitcase intact. Before removing anything, look for removable interior trim or lining panels: some models allow access to the lock fasteners from inside, revealing a serial or part number on the lock body. Photograph the lock and any markings and compare those images with listings from vintage-parts dealers and online forums dedicated to Samsonite luggage — collectors often recognize specific lock models and can point to compatible keys or complete replacement lock assemblies. If a new lock is needed, you can purchase matched replacement hardware that mounts the same way, preserving the exterior look; removing the old lock usually requires only the small nuts or screws reachable from inside the case. If you or a repairer must disassemble the lock, work slowly and keep every small part in order to allow reassembly. Avoid drilling or cutting the lock unless you accept permanent alteration, since that will reduce collectible value. Finally, weigh cost versus value: some repair shops will rekey a vintage lock for a moderate fee, while sourcing an original key or shell through collector networks may take longer but preserve originality.
