Quick fix: add a 6–8 in (15–20 cm) piece of 1 in / 25 mm nylon webbing per shoulder harness and fit a matching ladder-lock or quick-release buckle. Cut the webbing to length, singe the cut edges briefly with a lighter to prevent fraying, thread the extension through the existing adjuster, fold the tail back 1 in (25 mm) and secure with a box‑x stitch using bonded polyester thread (#69 or #92). Verify symmetry by measuring both sides and load-test to ~50 lb (22 kg) before full use.
Permanent replacement: measure torso length from the C7 vertebra to the top of the iliac crest; select a replacement shoulder harness 2–4 cm longer than that measurement for added clearance. Order OEM or aftermarket harnesses that match the pack’s attachment points and webbing width (commonly 20–25 mm or 25 mm). Install using either industrial bar‑tack sewing or six to eight stainless rivets with backing plates at the factory attachment bar for a serviceable, durable join.
Temporary alternatives and comfort tweaks: use commercial webbing extenders with a quick‑release buckle (match width), attach a short length of webbing plus a tri‑glide to create a slip-on extension, or move the sternum strap lower on the shoulder harness to gain effective reach without hardware changes. Add 10–15 mm closed‑cell foam under the new section if extra padding is required.
Tools, materials and safety notes: required: 25 mm nylon webbing, ladder‑lock or quick‑release buckles, bonded polyester thread, heavy‑duty sewing machine or rivet kit, lighter, scissors. Use matching webbing width for all fittings; avoid over‑heating the webbing when sealing ends; ensure all stitches are box‑x or bar‑tack style and inspect hardware for rated working load (do not exceed manufacturer’s buckle rating).
Measure current webbing length and calculate required extension
Measure while wearing the pack with a typical load: record the distance from the upper attachment point (where the shoulder pad/webbing meets the frame or top anchor) to the center of the adjustment buckle. Use a flexible cloth tape, keep the tape flat against the webbing, and log values in both cm and inches.
To determine current versus desired length, take two measurements: A) Current length = attachment point → adjustment buckle center with the pack set to your usual fit; B) Desired length = attachment point → adjustment buckle center after loosening/tightening until the shoulder pad sits where you want it while wearing the loaded pack. If you cannot wear the pack, measure desired placement on your torso: from the same attachment height to the buckle position that positions the pad roughly 2–3 cm below the acromion for most users.
Use this calculation: Extension_needed = Desired_length − Current_length + Hardware_and_seam_allowance. Use a default Hardware_and_seam_allowance of 7 cm (2–3 cm for buckle overlap/threading + 4–5 cm for sewing/folding). Example: Current 40 cm, Desired 50 cm → Extension_needed = 50 − 40 + 7 = 17 cm (round up to nearest 0.5 cm or 1/4″).
Measure both left and right webbing; if discrepancy >10 mm, use the longer value or inspect for twisted webbing, worn padding, or uneven anchor points before cutting new material. For extensions above 10 cm consider replacing or relocating the attachment point rather than a simple add-on.
Choose extension pieces matching the original webbing width and thickness so they pass through the existing buckle; add 3 cm extra if you plan a boxed stitch or bartack rather than a simple fold. After attaching the extension, test while loaded and check that shoulder pads clear the top of the shoulder and that the load sits properly on hips; adjust length in 5 mm increments if needed.
Identify strap type and attachment method (webbing, sewn-in, detachable)
Inspect the attachment point directly: if the woven webbing passes through an adjuster and continues, classify it as threaded webbing; if the end is hidden inside a seam with box-x or bartack stitching, treat it as sewn-in; if it terminates at a buckle, snap hook, carabiner or swivel clip, treat it as detachable.
Visual cues and quick tests
Look for these definitive signs: exposed cut edge with melted thermoplastic finish = nylon/polyester webbing; folded end with multiple bar-tacks or box stitch = sewn-in anchor; visible hardware (side-release buckle, triglide, D-ring) that can be unclipped = detachable. Gently pull the webbing through the adjuster to see if it slides freely (threaded) or is fixed by stitching or rivets (sewn-in/anchored). Photograph the attachment and mark orientation with tape before any work.
Tools, measurements and hardware match
Required tools: tape measure (measure width), seam ripper (to inspect sewn seams), small screwdriver/hex wrench (for screw-attached hardware), pliers (for split rings), magnifier or lamp. Common webbing widths to note for replacements: 12 mm (1/2″), 19 mm (3/4″), 25 mm (1″), 38 mm (1.5″), 50 mm (2″). Match hardware inner channel to webbing width; e.g., use a 25 mm triglide for 25 mm webbing. For sewn-in anchors, count stitch rows and record stitch pattern (box-x, bartack) so a tailor or shop can reproduce the load-bearing seam. If unsure which category applies, consult photographic references such as best aquarium in dallas texas and compare hardware and stitch types before modifying any load-bearing element.
Attach a webbing extender: pick buckles and secure threading
Use an extender that matches the original webbing width and choose a buckle with a minimum breaking strength roughly 10× the expected carried load (common targets: 600 lbf for light dayloads, 1,200–1,500 lbf for heavy loads or technical rigs).
Choosing the buckle
Select by webbing width, adjustment method and material: metal tri‑glides or stainless steel ladder locks for maximum abrasion resistance; acetal (nylon) side‑release buckles for quick detach; cam buckles for non‑slipping tension. Match the buckle slot width to the webbing nominal width (±1 mm). For load rating, pick a buckle listed ≥ the value in the table below or one size up from the pack’s expected peak load.
| Webbing width | Compatible buckle type | Typical minimum breaking strength (lbf) | Recommended finish |
|---|---|---|---|
| 20 mm (3/4″) | Tri‑glide, small ladder lock | 500–800 | Glass‑filled nylon or stainless steel |
| 25 mm (1″) | Tri‑glide, center adjustment ladder | 800–1,200 | Acetal nylon or stainless steel |
| 38 mm (1.5″) | Heavy ladder lock, metal tri‑bar, cam | 1,200–1,800 | Stainless steel or brass |
Threading and securing
Thread following the buckle maker’s pattern; for a 3‑bar ladder lock: feed webbing under the center bar, up over the outer bar, then back under the center bar to create a friction lock. Leave a tail of 25–50 mm (1″–2″) past the final buckle position for finishing.
Permanent attachment options:
– Sewing: fold webbing back 35–50 mm (1.4″–2″) and perform a box‑X stitch covering the folded area. Use bonded nylon or polyester thread (Tex 60–90), heavy needle (100–120/16–18), stitch length 3–4 mm, and at least 4 passes across the box; commercial walking‑foot machines or industrial zigzag are recommended.
– Rivets/Chicago screws: pre‑drill a 4–5 mm hole, install three fasteners spaced ~12–15 mm apart across the folded section; use stainless hardware and apply backing washer below the webbing where possible.
– Adhesive backup: apply a thin bead of flexible seam adhesive (e.g., urethane‑based) between folds before stitching or riveting for redundancy.
Finish the tail by trimming square, then melt the edge briefly (1–3 seconds) with a lighter or use a hot‑knife; avoid over‑melting. After installation, test with a static load 1.5× expected working load and inspect for slippage or stitch failure before field use.
Consider pairing extenders with tracking or gear recommendations: best luggage tracking device for android and consult gear lists such as best survival pack.
Sew on extra webbing: materials, stitch patterns and seam placement
Choose heavy-duty nylon or polyester webbing that matches the existing width; use a minimum 50 mm (2″) overlapped splice and sew a reinforced box‑and‑X plus bar‑tacks with bonded polyester thread and a 3.0–3.5 mm stitch length for reliable load transfer.
Materials
Webbing: flat nylon or polyester, common widths 19 mm (3/4″), 25 mm (1″), 38 mm (1.5″); pick the same width as the original. Pick flat (not tubular) webbing for easier sewing. Minimum overlap for sewn joints: 50 mm (2″); for heavy loads use 75 mm (3″).
Thread: bonded polyester or bonded nylon, heavy weight (Tex 35–70 range or specialized heavy‑duty upholstery thread). Needles: industrial or heavy‑duty domestic machine needle size 16/100 or 18/110 (denim/jeans or leather needle where appropriate). For hand work use waxed polyester saddlery thread, size equivalent to heavy upholstery.
Hardware and extras: stainless or brass rivets (4–5 mm shaft) with backing washers for secondary reinforcement; contact cement (neoprene) sparingly to tack layers before sewing; heat source (soldering iron or lighter) to fuse cut webbing ends.
Stitch patterns and seam placement
Primary stitch: Box with diagonal cross (“box‑and‑X”). Make the outer rectangle no narrower than the webbing width minus 2–4 mm; rectangle height = overlap length minus 10 mm, giving room for edge clearance. For 25 mm webbing, a 20×40–50 mm box is typical. Sew the rectangle, then sew both diagonals once each. Use 3–4 parallel passes on long edges for 25–38 mm webbing; increase to 4–6 passes for very heavy duty (military or load‑bearing) applications.
Stitch settings: 3.0–3.5 mm stitch length (approx. 8–9 stitches per inch). Thread tension should be high enough to flatten wraps but not so high it cuts fibers. Use short zigzag or bar‑tack stitches at stress focal points: bar‑tack length 10–15 mm with dense stitching (20–30 stitches in the bar) applied perpendicular to the load path.
Seam placement: place sewn overlap on the side of the harness that will carry the load so the sewing lies under compressive pressure rather than shearing across a single stitch line. Avoid locating seams where webbing must slide through adjusters or over metal corners; keep the seam at least 12–20 mm away from buckles and adjuster teeth. When attaching to padded panels, position stitching under the pad fold to reduce abrasion.
Edge finishing: melt cut ends with a hot tool immediately after trimming; press fused end flat with pliers. Apply a small dab of contact cement between layers before sewing to prevent shifting during machine work. For hand‑stitched repairs, use a saddle stitch along the box perimeter with at least 6–8 stitches per inch and add two bar‑tacks at the outermost load points.
Verification: after sewing, apply progressive loading and inspect for thread breakage, slippage, or webbing distortion. Re‑stitch any failing lines and add a rivet with a washer through the overlapped zone if stitching alone does not meet required strength.

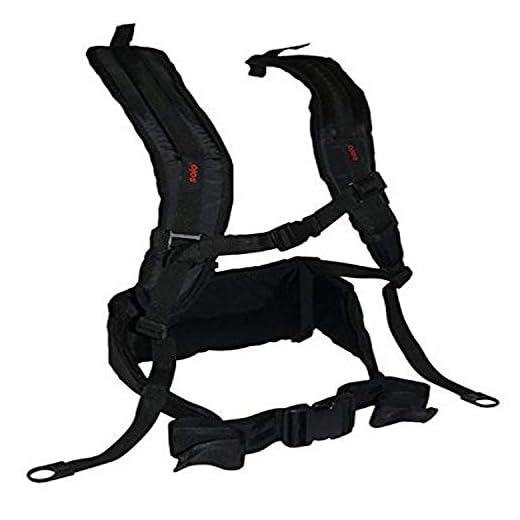

Replace shoulder harness with extended aftermarket units: measurements and installation
Select replacement shoulder harnesses with 1.5″ or 2″ webbing, rated 2,500–4,000 lb tensile strength, and an adjustable span that exceeds the original by at least 12″. Aim for total adjustable range roughly 30″–48″ depending on torso length and load type.
Measurement rules for choosing a replacement unit
- Required webbing length = desired adjusted span + anchor allowance + adjuster travel + tail allowance. Example: desired span 22″ + anchor allowance 5″ + adjuster travel 7″ + tail allowance 4″ = 38″ total.
- Webbing width: 1″ for light-day use, 1.5″ preferred for general use, 2″ for heavy loads or alpine packs.
- Pad dimensions: pad length 8″–12″, pad width 2″–3.5″, foam density 30–60 kg/m³ for a balance of comfort and support.
- Hardware compatibility: measure top anchor inside diameter (common sizes: 3/8″–5/8″ / 10–16 mm). Ensure tri-glide or ladder-lock fits chosen webbing width.
- Leave a minimum tail of 3.5″–4″ after threading through the adjuster to allow re-routing or re-sewing later.
Installation procedure (tools and steps)
- Tools and parts: pop rivet gun; drill bits 1/8″, 3/16″; stainless blind rivets 3/16″ (4.8 mm) or 1/4″ for heavy anchor points; flat steel or stainless backing plates (approx. 1.5″ x 0.5″); heavy-duty needle and nylon-wrapped polyester thread (bonded nylon #92/12 or upholstery thread) if stitching; scissors; lighter or heat source for webbing sealing; clamps.
- Remove original harness: open interior panel or remove rivets. If rivets are present, drill with 1/8″ then 3/16″ bit while supporting both sides to avoid tearing fabric. Preserve any internal anchor webbing if in good condition.
- Check internal anchor structure: if original anchor webbing is stitched to a load-bearing bar or frame, either reuse it or replace with new reinforcing webbing of same width and at least matching tensile rating.
- Route new shoulder harness through the same channel or sleeve used by the original. Position pad centers so inner pad edge sits ~1″–2″ from pack spine centerline; adjust later for user shoulder slope.
- Secure at top anchor using backing plate + blind rivet system or M5/M6 stainless bolts with nut and backing plate. Use stainless rivets for corrosion resistance; pick rivet length to match stack thickness (fabric + backing plate). For general panels, 3/16″ rivets are standard.
- For bottom anchoring to a hipbelt or lower ladder bar use the same hardware approach. If replacing detachable hooks, verify gate opening and spring tension; replace with stainless snap hooks rated ≥ load rating of webbing.
- Trim excess tail leaving 3.5″–4″. Heat-seal nylon webbing ends briefly to prevent fray; press molten end flat with pliers to create a neat finish.
- Optional reinforcement: add a 3/4″ box-x stitch at any sewn anchor or webbing overlap using heavy-duty thread and a walking-foot or industrial machine. When hand-stitching, use lockstitch and backstitch every 6–8 threads.
- Functional test: load the pack to expected working weight and inspect all attachment points for movement, fabric distortion, or rivet deformation. Re-torque or replace hardware if any shift occurs.
- Notes on materials: choose nylon webbing for stretch resistance and abrasion; polyester for lower water absorption. Use stainless hardware in coastal environments.
- Keep spare short lengths of webbing and two extra rivets in repair kit for field fixes.
Reinforce and test extended shoulder webbing for load, abrasion and safety
Reinforce added webbing with a sewn box‑X plus end bartacks, back the junction with a 2 mm Cordura or leather patch, then perform a static hold at 2× intended load for 5 minutes and a 1,000‑cycle dynamic fatigue test at 1.5× load.
- Materials & hardware
- Thread: bonded nylon or polyester, Tex 70–90 (heavy duty).
- Needle (machine): 16/100–18/110 metal needle; walking foot recommended for multilayer feed.
- Backing: 2.0 mm Cordura, leather or 1.6–2.0 mm nylon laminate, patch sized at least 50×80 mm under the stitch area.
- Rivets/washers: stainless steel M5 with 10–12 mm washer under load points when using hardware; use lock washers where appropriate.
- Sewing specifications
- Minimum webbing overlap: 75 mm (prefer 100 mm) for load-bearing joins.
- Stitch pattern: box with diagonal X inside. Add parallel straight rows across the box if possible (3–4 parallel lines + X).
- Stitch length: 3.0–4.0 mm. Avoid overly short stitches that perforate fibers excessively or very long stitches that concentrate load on few threads.
- Bartacks: 6–10 mm wide at both ends of the box; 8–12 passes per bartack using bartack setting on machine or replicated by short tight zigzag.
- Seam allowance from webbing edge: keep stitch lines ≥8 mm from edge to prevent edge unraveling.
- Mechanical reinforcement options
- Add a 1.5–2.0 mm aluminum or nylon load plate under buckles to spread load; secure with rivets and a backing washer.
- Where sewing is not possible, use rated climbing‑grade hardware (steel or aluminum) with closed loops and rivet+washer distribution plates.
- Fuse cut webbing ends with a brief melt, then overlock or stitch within 10 mm of the sealed end to prevent brittle edge failure.
- Static load test
- Set target: 2× expected carried mass. Example: intended load 20 kg → test with 40 kg (≈392 N) held for 300 seconds.
- Procedure: hang mass centrally on modified harness point; inspect for immediate slippage, stitch failure, hardware deformation.
- Pass criteria: no seam opening >3 mm, no webbing elongation >5 mm at the join, no permanent deformation of hardware.
- Dynamic fatigue test
- Set target: 1.5× intended mass, 1,000 cycles at ~1 Hz (use a motorized rig or manually simulate repeated loading). Example: for 20 kg intended mass use 30 kg cyclic load.
- Monitor: stitch integrity, progressive loosening, thread breakage or abrasion at contact points.
- Pass criteria: no cumulative slippage >10 mm, stitches intact, no shedding of yarns beyond surface fuzz.
- Abrasion test
- Simulate shoulder friction: clamp sample under a 2–5 kg slider with 120 grit sandpaper and run 500 stroking cycles perpendicular to webbing axis.
- Inspect: outer fiber wear, core exposure, seam chafing between webbing and backing plate.
- Pass criteria: no core exposure, no loss of >20% webbing width, stitches remain secure.
- Field break‑in protocol
- Begin with no-load wear for 2 hours, then add incremental weights at 25%, 50%, 75% of intended mass on subsequent days while rechecking fastenings.
- After first week of use, perform static hold at intended mass for 60 seconds and inspect for fresh deformation.
- Inspection checklist (visual & tactile)
- Even stitch spacing and intact thread lines; no skipped stitches.
- No loose webbing fibers or transverse cuts within 15 mm of the stitch zone.
- Hardware free of sharp burrs; rivets flush with washer and fully clinched.
- Backer patch glued/sewn with full contact; no pockets or delamination.
- Failure responses
- Minor fraying: trim heat‑seal, re‑stitch with additional box rows and bartacks.
- Partial stitch failure or rivet loosening: remove affected area, add new backing patch, re‑install rivets with larger washers and re‑sew box‑X with new thread.
- Hardware deformation or webbing core exposure: replace component; do not reuse deformed parts.
Log each test (date, mass used, cycle count, observations). If any test fails, repeat after repairs and pass all three tests before regular use.
