Calculation details: a single U.S. banknote is ~6.14×2.61 inches and ~0.0043 inches thick. A strap of 100 notes is ~6.14×2.61×0.43 in and equals $10,000 in $100s. One hundred such straps produce ~690 cubic inches (~11.3 liters) and weigh ~10,000 grams. A common 16×12×4-inch case has ~768 cubic inches (~12.6 L) internal volume, so a well-packed set of $100 straps fits with minimal padding.
Alternate denominations and consequences: $20 notes require five times the count and volume – ~50,000 notes, ~56.5 L, mass ~50 kg (≈110 lb) for the same nominal value; $50s require double the count of $100s (20,000 notes), ~22.6 L, mass ~20 kg (≈44 lb). Choose higher denominations to minimize volume and weight when using a compact carry case.
Packing recommendations: use standard bank straps and lay them flat in layers, alternating orientation to reduce voids; allow ~10–15% extra internal volume for protective foam and closure clearance. Use a rigid, lockable case rated for the expected mass (add ~2–3 kg for packing materials). For transport, employ a certified cash-in-transit service or insured courier, and verify counts with a currency counter before sealing.
Count of US $100 bills in a standard 18×13×4‑inch case and calculation method
Use the short edge (2.61″) of each bill along the 18″ length and the long edge (6.14″) along the 13″ width: capacity ≈ 11,160 one‑hundred‑dollar notes (total value $1,116,000).
Assumptions and note dimensions
United States Federal Reserve note: 6.14″ × 2.61″. Typical thickness per note ≈ 0.0043″ (0.11 mm). Interior usable volume assumed 18.00″ × 13.00″ × 4.00″; remove 0.1–0.3″ from any dimension if internal lining, hinges, or padding exist.
Step‑by‑step calculation
1) Layout per horizontal layer (orientation chosen): Floor(18 ÷ 2.61) = 6 notes along length; Floor(13 ÷ 6.14) = 2 notes across width → 6 × 2 = 12 notes per layer. 2) Layers in depth: Floor(4.00 ÷ 0.0043) = 930 layers. 3) Total notes = 12 × 930 = 11,160 notes. 4) Monetary value = 11,160 × $100 = $1,116,000.
Alternate orientation (6.14″ along 18″) yields Floor(18 ÷ 6.14)=2 × Floor(13 ÷ 2.61)=4 → 8 per layer → 8 × 930 = 7,440 notes (value $744,000). Diagonal or staggered packing can increment capacity slightly but increases risk of creasing and reduces packing efficiency in real interiors.
Practical recommendations: bundle in sets of 100 (≈0.43″ per bundle) and use thin separators to prevent edge damage; account for hardware and lining that can reduce usable depth by 0.1–0.3″, lowering final count by roughly 2–7%. For secure transport and protective options consult gear reviews such as best luggage used by airline personnel and consider suitable protective accessories similar to a best strobe umbrella for equipment cases.
Bank-strap bundle capacity in a 15×11×3‑inch attache by bundle size
Recommendation: For 50‑note straps use flat (lying) placement; for 100‑note and 500‑note straps use narrow‑side‑up (2.61″ vertical); 200‑note straps produce the same result either way. Exact counts and calculations below.
Dimensions and assumption: US note 6.14″ × 2.61″; single‑note thickness 0.0043″ (thus thickness t = 0.0043×N for an N‑note strap). Usable interior assumed 15″ × 11″ × 3″, rectangular grid packing, no internal dividers, no extra padding.
Packing geometries used: “Flat” = strap lying with footprint 6.14″ × 2.61″ and vertical = t. Per layer (flat) = floor(15/6.14) × floor(11/2.61) = 2 × 4 = 8 straps. “Narrow‑side‑up” = vertical = 2.61″, footprint 6.14″ × t, per layer = floor(15/6.14) × floor(11/t) = 2 × floor(11/t). Layer count = floor(3/vertical).
50‑note strap (t = 0.215″): Flat: 8 per layer × floor(3/0.215)=8×13 = 104 straps → 5,200 notes. Narrow‑side‑up: 2 × floor(11/0.215)=2×51 = 102 straps (1 layer) → 5,100 notes. Use flat orientation (104 straps).
100‑note strap (t = 0.43″): Flat: 8 × floor(3/0.43)=8×6 = 48 straps → 4,800 notes. Narrow‑side‑up: 2 × floor(11/0.43)=2×25 = 50 straps (1 layer) → 5,000 notes. Use narrow‑side‑up (50 straps).
200‑note strap (t = 0.86″): Flat: 8 × floor(3/0.86)=8×3 = 24 straps → 4,800 notes. Narrow‑side‑up: 2 × floor(11/0.86)=2×12 = 24 straps (1 layer) → 4,800 notes. Either orientation yields 24 straps.
500‑note strap (t = 2.15″): Flat: 8 × floor(3/2.15)=8×1 = 8 straps → 4,000 notes. Narrow‑side‑up: 2 × floor(11/2.15)=2×5 = 10 straps (1 layer) → 5,000 notes. Use narrow‑side‑up (10 straps).
Practical notes: Allow for strap band thickness, sealing tape or divider material (add ~0.02–0.05″ per layer); if padding or a zip liner is present, subtract one layer for thick strap stacks. All counts rounded down to whole straps using the stated geometric packing assumptions.
Packing methods: single stacks, banded bundles, and flat layering to maximize notes per cubic inch
Recommendation: use banded 50-note bundles laid flat in alternating orientation per layer, compress each layer with a rigid board, and reserve loose single stacks for irregular voids; this typically achieves 90–98% of theoretical packing density while keeping handling simple and theft visibility low.
Calculations and baseline densities
US note dimensions: 6.14 in × 2.61 in; thickness ≈ 0.0043 in (0.109 mm). Single-note volume = 6.14×2.61×0.0043 ≈ 0.06891 in³. Theoretical density = 1 / 0.06891 ≈ 14.51 notes per cubic inch.
Common bundle volumes (nominal, excluding strap thickness): 100-note bundle: thickness ≈ 0.430 in → volume ≈ 6.891 in³; 50-note bundle: 0.215 in → 3.445 in³; 20-note bundle: 0.086 in → 1.378 in³. Each yields the same theoretical 14.51 notes/in³; practical differences arise from block geometry and leftover voids.
Practical packing performance and tactics
Geometry losses: rectangular bundles create unusable pockets when internal dimensions do not divide evenly by 6.14 and 2.61. Expect effective densities of approximately:
– 100-note banded blocks: 12.0–14.0 notes/in³ (5–20% loss typical, worse if case interior is off-grid).
– 50-note banded blocks: 13.0–14.5 notes/in³ (smaller block size reduces dead volume).
– Loose single stacks, compressed and cut to edges: 14.3–14.5 notes/in³ (closest to theoretical).
Layout tactics: align bundle long edges with the case long axis; alternate every other layer rotated 90° to reduce columnar voids; use thin cardboard between layers to distribute compression evenly; fill corner pockets with 20-note bundles or loose stacks trimmed to shape; avoid straps or elastic that add >0.02–0.05 in total thickness per bundle unless necessary.
Compression and protection: apply a flat rigid plate and gentle clamping to remove micro-gaps before closing the lid. For leather-lined interiors place a barrier sheet to prevent dyes and odors – for stain-cleaning guidance see how to clean cat pee from leather couch.
Handling note: choose bundle sizes that divide the interior floor area with minimal remainder; if frequent access is needed, prefer 50-note bundles for balance between packing efficiency and retrievability.
Weight and handling: pounds per 1,000 US notes and practical carrying limits for attache cases
Recommendation: keep single‑hand carries under 30 lb; 1,000 US notes weigh ~1,000 g (≈2.20462 lb), so plan loads by grams or pounds, not by face value alone.
- Unit mass: one Federal Reserve note ≈ 1.0 g (0.00220462 lb).
- Common groupings:
- 1 bank strap (100 notes) ≈ 100 g ≈ 0.22046 lb.
- 1 bundle (10 straps = 1,000 notes) ≈ 1,000 g ≈ 2.20462 lb.
- 10,000 notes ≈ 10,000 g ≈ 22.0462 lb.
- Bills per pound: ≈ 453.5929 notes per lb (useful for quick conversions).
Representative value conversions (rounded):
- 20 lb carry ≈ 9,072 notes → $907,200 in $100s or $181,440 in $20s.
- 30 lb carry ≈ 13,608 notes → $1,360,800 in $100s or $272,160 in $20s.
- 50 lb carry ≈ 22,680 notes → $2,268,000 in $100s or $453,600 in $20s.
Practical handling guidelines:
- One‑hand carry: aim for 20–30 lb for comfortable, controlled transport; above 30–35 lb increases grip fatigue and risk of dropped load.
- Case hardware: handles and latches are often rated above 50 lb, but repeated stress and lateral shocks reduce lifespan; prefer designs with reinforced handles or metal frames for repeated heavy use.
- Distribution: place stacked bundles directly over the handle axis to minimize torque on hinges; a centered, low profile stack reduces tipping and latch strain.
- Wheeled solutions: use a rolling case when total weight exceeds ~35 lb; wheels remove hand stress and mitigate handle failure risk.
- Two‑person or cart transfer: required for loads over ~70–80 lb for safety and to avoid structural damage to the container.
Packing and ancillary weight:
- Bank straps and rubber bands add negligible mass (~a few grams per strap) but increase thickness; include ~0.5–1% extra mass for packaging materials in calculations.
- Security inserts (locks, foam inserts, tamper seals) add weight; factor those items into final load estimates rather than relying on note mass alone.
Operational note: plan by grams or pounds and convert to face value only after confirming denomination mix and container handling method; choose wheeled or reinforced cases when expected face‑value totals produce weights above the single‑hand comfort threshold.
Legal and security steps when transporting large cash sums domestically or across borders
Declare currency totals of $10,000 or more at U.S. ports of entry/exit using FinCEN Form 105; failure to declare can trigger seizure under 31 U.S.C. § 5316 and related criminal or civil actions.
Documentation to carry
Carry original bank withdrawal slips, cashier’s receipts, wire transfer confirmations, invoices or purchase agreements that trace the source and intended use of the funds; keep copies laminated or in a separate envelope.
Carry government photo ID for every principal involved; if transporting on behalf of an entity, carry notarized authorization and the entity’s bank statement showing the withdrawal.
Prepare a single-page cover sheet summarizing amount, date of withdrawal, payer/payee, and contact information for the bank branch and account manager; hand this to inspecting officers when requested.
Compliance and reporting practices
Do not fragment transactions to avoid reporting thresholds (structuring); 31 U.S.C. § 5324 prohibits splitting deposits/withdrawals to evade reporting and triggers Suspicious Activity Reports (SARs).
Expect banks to file Currency Transaction Reports (CTR) for cash transactions exceeding $10,000; pre-notify your bank branch of planned large withdrawals to obtain written bank confirmation of approved disbursement.
Check destination-country declaration thresholds before crossing any border; many jurisdictions use a €10,000 / equivalent threshold and require a written customs declaration with penalties for nondisclosure.
If a seizure occurs, ask for a written receipt and the statute cited; retain counsel experienced in asset-forfeiture and file for prompt administrative or judicial recovery if appropriate.
Physical security measures
Prefer armored transport providers with a written contract, insurance policy for transported sums, GPS tracking and tamper-evident sealed containers; obtain proof of insurance limits and indemnity clauses in advance.
When using private transport, apply the two-person rule (driver plus one guard), vary routes and times, avoid predictable parking or handoff locations, and use unmarked vehicles for transfer movements.

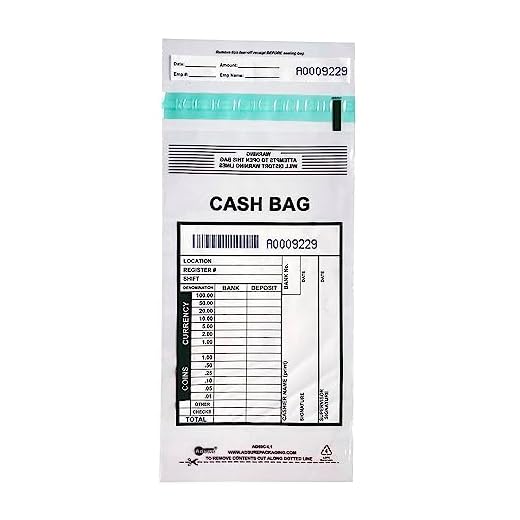

Use tamper-evident tamper bags with serialized seals and record seal numbers on the cover sheet; store currency in discrete, padded containers to reduce noise and visible bulges during screening.
Insure the funds under a transit policy that covers theft, loss and seizure risk where available; confirm exclusions related to government seizure before signing any agreement.
Risk-reduction alternatives
Prefer wire transfers, escrow accounts, certified checks or standing with an armored carrier to physical carriage whenever practical; these options reduce exposure to civil forfeiture and violent crime.
If physical carriage is unavoidable, coordinate with the sending and receiving bank for same-day electronic verification and consider filing a pre-transport notice with local law enforcement for high-risk shipments.
